PCA9460BUKZ - NXP

Description: Power Management Specialized - PMIC Power Manage IC (PMIC) for i.MX 8ULP + LPDDR4X

Download PCA9460BUKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

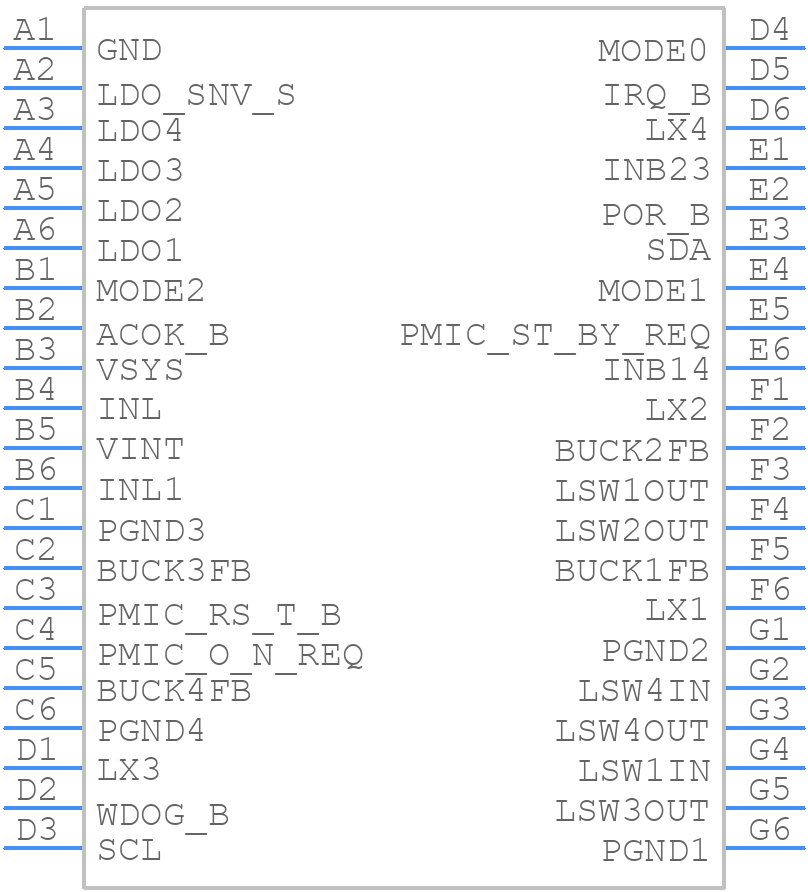

Symbol
PCA9460BUKZ - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9460BUKZ - NXP PCB footprint - BGA - BGA - PCA9460BUKZ
click to zoom
3D Models
PCA9460BUKZ - NXP - 3D model - BGA - PCA9460BUKZ
click to zoom

PCA9460BUKZ Details

  • Manufacturer Part Number:

    PCA9460BUKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PBGA-B42

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA42(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

PCA9460BUKZ Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The PCA9460BUKZ supports standard I2C bus speeds up to 400 kHz. To configure the bus speed and timing, refer to the I2C bus specification (UM10204) and the PCA9460BUKZ datasheet, which provide detailed information on clock frequency, rise time, and hold time.
  • The maximum current rating for the USB pins (VBUS, D+, and D-) is 1.5 A. However, it's recommended to limit the current to 500 mA to ensure reliable operation and prevent overheating.
  • The PCA9460BUKZ has built-in OVP and OCP features. For OVP, the device will automatically disconnect the USB port if the input voltage exceeds 6.5 V. For OCP, the device will limit the current to 1.5 A. However, it's recommended to add external protection components, such as fuses or PTCs, to ensure robust protection against over-voltage and over-current conditions.
  • The recommended operating temperature range for the PCA9460BUKZ is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance and prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9460BUKZ Overview

Use the download button to access the PCA9460BUKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA94, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
