PCA9515AD footprint, schematic symbol and 3D model by Texas Instruments

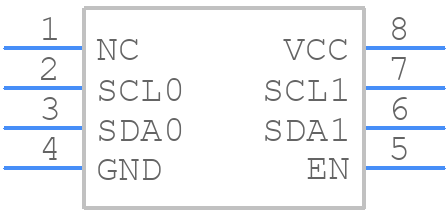

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCA9515AD
Part Number PCA9515AD
Manufacturer Texas Instruments
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC-D-08
Released Date Jan 12, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

PCA9515AD Details

Manufacturer Part Number:
PCA9515AD
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
GREEN, PLASTIC, SOIC-8
Pin Count:
8
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Texas Instruments
YTEOL:
0
Interface IC Type:
BUS BUFFERS
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.3 V
Supply Voltage-Nom:
3 V
Supply Voltage1-Max:
3.6 V
Supply Voltage1-Min:
2.3 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

PCA9515AD Frequently Asked Questions (FAQs)

The PCA9515AD can support I2C bus frequencies up to 400 kHz, but it's recommended to operate at 100 kHz or lower for reliable operation.
While PCA9515AD is primarily designed for I2C bus voltage translation, it can be used for other communication protocols like SPI or UART, but it's not recommended as it may not provide the necessary signal conditioning and may not meet the protocol's specific requirements.
To ensure proper operation, the PCA9515AD requires a stable power supply (VCC) and a bias voltage (VBIAS) that meets the recommended operating conditions. VCC should be in the range of 2.3V to 5.5V, and VBIAS should be in the range of 1.8V to 5.5V. Additionally, decoupling capacitors should be used to filter out noise and ensure stable operation.
The PCA9515AD can sink or source up to 10 mA of current per I/O pin, but it's recommended to limit the current to 5 mA or less to ensure reliable operation and prevent overheating.
Yes, PCA9515AD can be used in a multi-master I2C bus configuration, but it's essential to ensure that the masters are properly synchronized and that the bus is properly terminated to prevent bus contention and data corruption.
