The maximum frequency of operation for PCA9515APWT is 400 kHz, as specified in the datasheet. However, it's recommended to operate at a lower frequency to ensure reliable operation and to avoid electromagnetic interference (EMI) issues.
To ensure reliable operation of PCA9515APWT in noisy environments, it's recommended to use proper PCB layout techniques, such as separating the I2C bus from other signals, using a ground plane, and adding decoupling capacitors. Additionally, consider using a common-mode filter or a shielded cable to reduce electromagnetic interference (EMI).
The maximum cable length supported by PCA9515APWT depends on the specific application and the type of cable used. As a general rule, the maximum cable length is limited by the capacitance of the cable, which can affect the signal integrity. A good rule of thumb is to limit the cable length to 1-2 meters for reliable operation.
Yes, PCA9515APWT is compatible with both 3.3V and 5V logic levels. The device has a wide operating voltage range of 2.3V to 5.5V, making it suitable for use in a variety of applications.
To troubleshoot I2C bus issues with PCA9515APWT, use a logic analyzer or an oscilloscope to monitor the I2C bus signals. Check for signal integrity issues, such as ringing or overshoot, and ensure that the clock and data signals are within the specified timing parameters. Also, verify that the I2C bus is properly terminated and that there are no bus conflicts or addressing issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCA9515APWT Overview

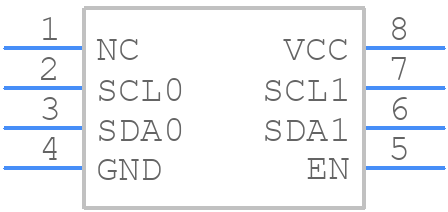

Use the download button to access the PCA9515APWT schematic symbol, PCB footprint, and 3D model.
