The maximum frequency of operation for the PCA9544ADGVR is 400 kHz, as specified in the datasheet. However, it's recommended to operate at a lower frequency to ensure reliable operation and to avoid any potential issues with signal integrity.
No, the PCA9544ADGVR is not designed to be used as a level shifter. It's a bidirectional I2C bus multiplexer, and it does not provide level shifting capabilities. If you need to shift voltage levels, you'll need to use a separate level shifter IC.
The PCA9544ADGVR does not have built-in hot-swapping capabilities. To handle hot-swapping, you'll need to implement external circuitry to detect the insertion or removal of devices and control the multiplexer accordingly. You may need to use additional ICs, such as a hot-swap controller, to ensure safe and reliable operation.
The PCA9544ADGVR is designed for I2C bus multiplexing, and it's not compatible with I3C devices. I3C is a newer bus standard that's not supported by this device. If you need to multiplex I3C devices, you'll need to use a different IC that's specifically designed for I3C.
The maximum capacitance of the bus that the PCA9544ADGVR can drive is not explicitly specified in the datasheet. However, as a general rule, the total capacitance of the bus should be kept as low as possible to ensure reliable operation. A good rule of thumb is to keep the total capacitance below 400 pF.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCA9544ADGVR Overview

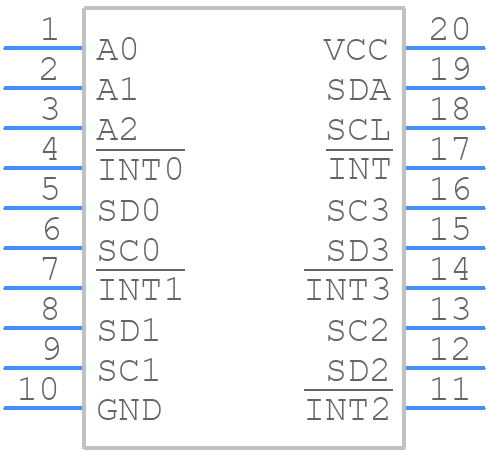

Use the download button to access the PCA9544ADGVR schematic symbol, PCB footprint, and 3D model.
