The recommended land pattern for PCH1J101MCL1GS can be found in the Nichicon Corporation's recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
The ESR of PCH1J101MCL1GS is specified in the datasheet, but it's essential to consider it in your design to ensure optimal performance. You can use the ESR value to calculate the impedance of the capacitor and ensure that it meets your design requirements. Additionally, you may need to consider the ESR in your power integrity and signal integrity simulations.
PCH1J101MCL1GS is a general-purpose capacitor, and its suitability for high-frequency applications depends on the specific requirements of your design. While it may not be the best choice for extremely high-frequency applications, it can be used in many high-frequency circuits. You should review the datasheet and consult with Nichicon Corporation's application notes or technical support to determine its suitability for your specific application.
To ensure the reliability of PCH1J101MCL1GS, follow the recommended operating conditions, storage conditions, and handling procedures outlined in the datasheet. Additionally, consider the capacitor's derating, voltage, and temperature ratings, and ensure that your design meets these requirements. You should also consider implementing redundancy, fault tolerance, and other reliability-enhancing design techniques in your system.
PCH1J101MCL1GS has a maximum operating temperature of 105°C, as specified in the datasheet. While it can operate in high-temperature environments, it's essential to consider the capacitor's temperature derating and ensure that your design meets the recommended operating conditions. You should also consult with Nichicon Corporation's application notes or technical support to determine the capacitor's suitability for your specific high-temperature application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCH1J101MCL1GS Overview

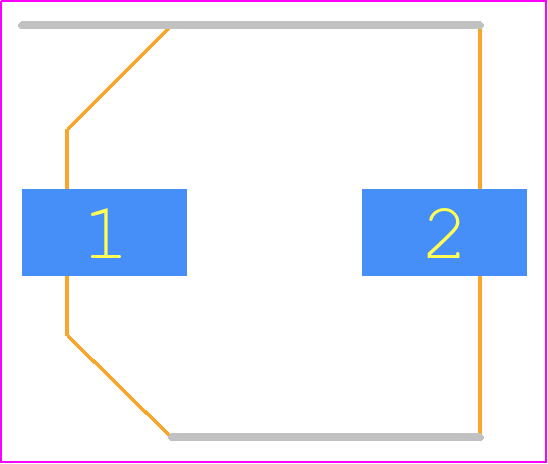

Use the download button to access the PCH1J101MCL1GS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCH1J,
or try a keyword search, such as Aluminum Electrolytic Capacitors
