PCM1704U - Texas Instruments

Description: PCM1704U, Audio DAC Dual 24 bit-, 96ksps ±3%FSR Serial, 20-Pin SOP

Download PCM1704U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

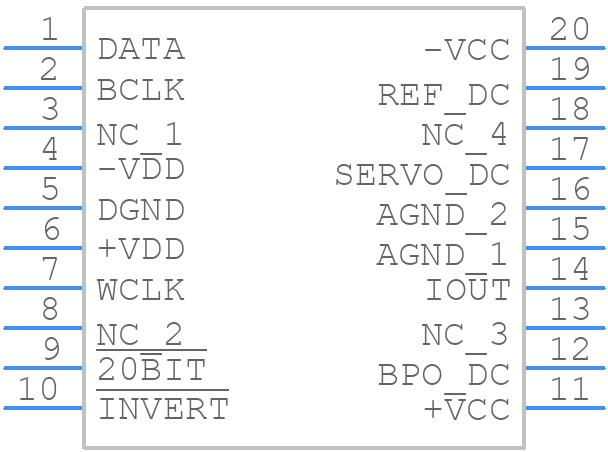

PCM1704U - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1704U - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G20)
click to zoom
3D Models
PCM1704U - Texas Instruments - 3D model - Small Outline Packages - NS (R-PDSO-G20)
click to zoom

PCM1704U Details

  • Manufacturer Part Number:

    PCM1704U

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e6

  • Length:

    12.6 mm

  • Moisture Sensitivity Level:

    2

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    0.2 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1704U Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This ensures proper device operation and prevents damage.
  • The analog input filter should be designed to reject noise and interference. A simple RC filter with a cutoff frequency of around 10 kHz is recommended. The filter should also be impedance-matched to the analog input impedance of the PCM1704U.
  • The recommended clock frequency is 256 fs (where fs is the sampling frequency). The clock jitter tolerance is ±50 ppm. Exceeding this tolerance may affect the device's performance and accuracy.
  • The PCM1704U outputs data in a 24-bit, MSB-first, two's complement format. The output data is also synchronized with the LRCK (left-right clock) signal. Ensure that the receiving device is configured to accept this data format and synchronization.
  • The PCM1704U has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink if necessary. Avoid overheating the device to prevent damage or performance degradation.
