PCM1723E - Texas Instruments

Description: 96dB SNR Stereo DAC with Programmable PLL

Download PCM1723E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

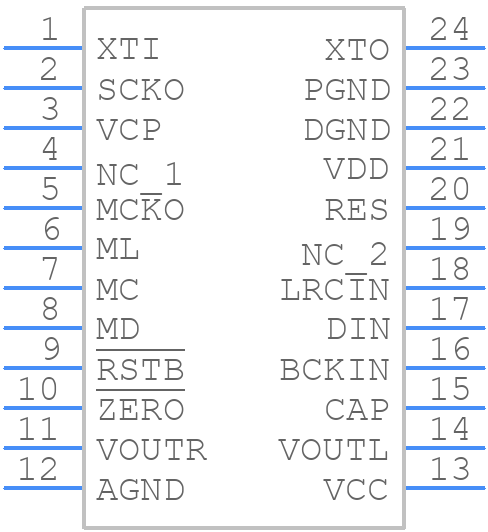

PCM1723E - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1723E - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G24)
click to zoom
3D Models
PCM1723E - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G24)
click to zoom

PCM1723E Details

  • Manufacturer Part Number:

    PCM1723E

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Output Voltage-Max:

    3.1 V

  • Analog Output Voltage-Min:

    -3.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.096 MHz

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1723E Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and that the device is properly initialized.
  • To optimize the performance of the PCM1723E in terms of THD+N, it is recommended to use a high-quality clock source, ensure proper power supply decoupling, and optimize the analog output filter design. Additionally, using a low-jitter clock source and minimizing digital noise on the PCB can also help to improve THD+N performance.
  • The maximum allowed capacitance on the analog output pins of the PCM1723E is 100nF. Exceeding this value can cause instability and affect the device's performance.
  • To configure the PCM1723E for master clock mode, the MCLK pin should be connected to a clock source, and the BCK pin should be connected to the clock output of the PCM1723E. The device should be configured for master clock mode by setting the appropriate bits in the control register.
  • The recommended layout and routing for the PCM1723E involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog output traces. Additionally, it is recommended to use a star topology for the power supply connections and to decouple the power supply pins with high-quality capacitors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1723E Overview

Use the download button to access the PCM1723E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
