- Part Number PCM1748KE
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DBQ0016A
- Released Date Dec 23, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PCM1748KE Details
-
Manufacturer Part Number:
PCM1748KE
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
16
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Texas Instruments
PCM1748KE Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
-
To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and place the analog components close to the PCM1748KE. Also, use a low-impedance path for the clock signal and keep the clock signal away from the analog signals.
-
The maximum clock frequency that can be used with the PCM1748KE is 256 fs (where fs is the sampling frequency). However, it's recommended to use a clock frequency that is 10-20 times the sampling frequency to ensure proper operation.
-
To configure the PCM1748KE for master clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the bit clock frequency (which is typically 64 times the sampling frequency). Also, set the LRCK pin to the word clock frequency (which is typically the sampling frequency).
-
The recommended termination for the digital output pins is a 50-ohm resistor to ground, which helps to reduce electromagnetic interference (EMI) and improve signal integrity.
Trust Checks
Community Provided
System Verified
Community Approved
PCM1748KE Overview

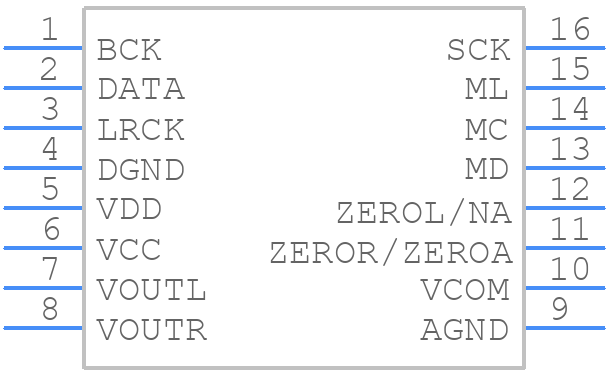

Use the download button to access the PCM1748KE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17,
or try a keyword search, such as Digital to Analog Converters
