PCM1748KEG4 - Texas Instruments

Description: Audio D/A Converter ICs 24Bit/192kHz Smplg 6Ch Enh Mltl D-S DAC

Download PCM1748KEG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

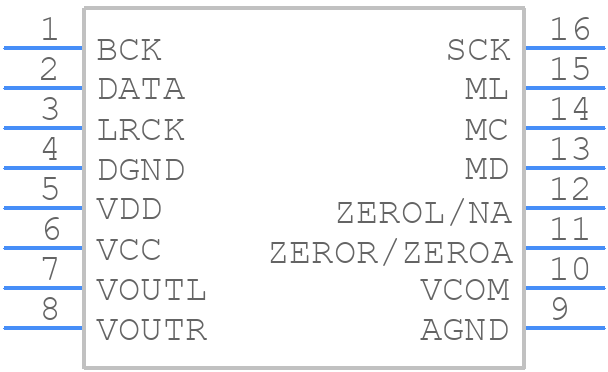

PCM1748KEG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1748KEG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
PCM1748KEG4 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

PCM1748KEG4 Details

  • Manufacturer Part Number:

    PCM1748KEG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    3.41 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.096 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PCM1748KEG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device is properly initialized.
  • To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use a low-impedance power supply and decouple the power pins with capacitors.
  • The maximum clock frequency that can be used with the PCM1748KEG4 is 192 kHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
  • To configure the PCM1748KEG4 for master mode operation, set the M/S pin high, and connect the BCK pin to the clock source. The device will then generate the clock signal and transmit it to the slave devices.
  • The recommended termination scheme for the PCM1748KEG4's digital outputs is to use a 50-ohm resistor in series with a 50-pF capacitor to ground. This helps to reduce electromagnetic interference (EMI) and improve signal integrity.
