PCM1794AQDBRQ1 - Texas Instruments

Description: 132-dB, 24-bit, 192-kHz advanced Segment, Audio Stereo Digital-to-Analog Converter

Download PCM1794AQDBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

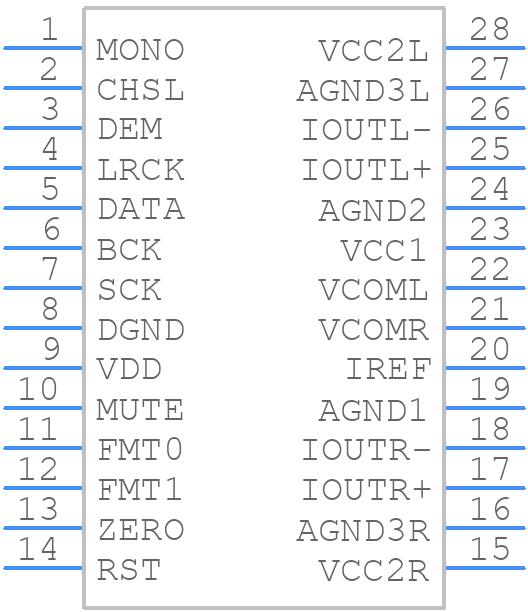

PCM1794AQDBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1794AQDBRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A_A
click to zoom
3D Models
PCM1794AQDBRQ1 - Texas Instruments - 3D model - Small Outline Packages - DB0028A_A
click to zoom

PCM1794AQDBRQ1 Details

  • Manufacturer Part Number:

    PCM1794AQDBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1794AQDBRQ1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital power supplies (VCCIO and VCCPLL). This ensures that the internal voltage regulators are powered up correctly.
  • To optimize the PCB layout, keep the analog and digital power supplies separate, use a solid ground plane, and keep the clock and data lines as short as possible. Also, use a low-impedance path for the analog output and decouple the power supplies with capacitors.
  • The maximum clock frequency is 256 fs (384 kHz), but it's recommended to use a clock frequency of 128 fs (192 kHz) or lower to ensure optimal performance and minimize jitter.
  • To configure the PCM1794AQDBRQ1 for Master Clock Mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Also, set the WS pin to the desired word select frequency, and configure the serial data format using the SDIF pin.
  • The recommended operating temperature range is -40°C to 85°C, but the device can operate up to 105°C with reduced performance and reliability.
