The recommended power-up sequence is to apply VCC first, followed by VREF, and then the clock signal. This ensures proper initialization of the device.
To optimize the analog input stage, use a low-impedance source, keep the input signal within the recommended range, and use a high-quality, low-noise analog power supply. Additionally, consider using a buffer amplifier or an analog filter to improve signal quality.
The maximum clock frequency for the PCM1801UG4 is 256 fs (where fs is the sampling frequency). However, it's recommended to use a clock frequency that is at least 10 times the sampling frequency to ensure proper operation.
To minimize the impact of clock jitter, use a high-quality clock source with low jitter, and consider using a clock jitter attenuator or a phase-locked loop (PLL) to further reduce jitter. Additionally, ensure that the clock signal is properly terminated and routed to minimize noise and reflections.
To ensure optimal performance, follow good layout and routing practices, such as keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and vias. Additionally, consider using a 4-layer PCB with a dedicated analog ground plane and a separate digital ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1801UG4 Overview

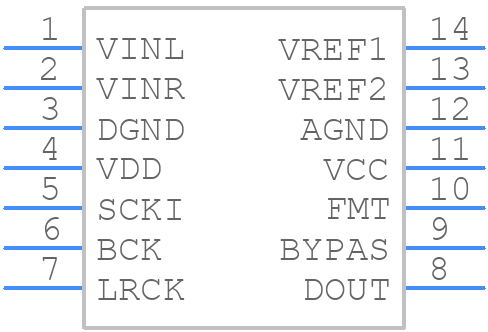

Use the download button to access the PCM1801UG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
