The recommended power-up sequence is to apply VCC first, followed by VREF, and then the clock signal. This ensures proper initialization of the device.
To optimize the analog input stage, use a low-pass filter to remove high-frequency noise, and ensure the input signal is within the recommended common-mode voltage range (VCM). Also, use a high-impedance source and a low-capacitance layout to minimize signal attenuation.
The PCM1802DB supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
To minimize clock jitter and phase noise, use a high-quality clock source, such as a crystal oscillator, and ensure the clock signal is properly terminated and filtered. Additionally, consider using a clock jitter attenuator or a phase-locked loop (PLL) to further reduce jitter and noise.
To minimize noise and ensure proper operation, use a multi-layer PCB with a solid ground plane, and route the analog and digital signals separately. Keep the analog input traces short and away from digital signals, and use a star-configuration for the power supply connections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1802DB Overview

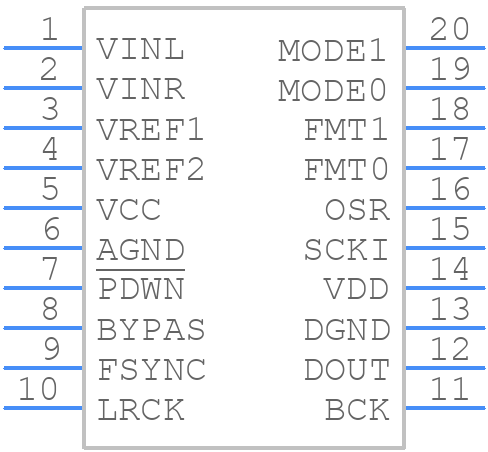

Use the download button to access the PCM1802DB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18,
or try a keyword search, such as Analog to Digital Converters
