PCM1803DBR - Texas Instruments

Description: 2-Channel Dual ADC Delta-Sigma 96ksps 24-bit Serial 20-Pin SSOP T/R

Download PCM1803DBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

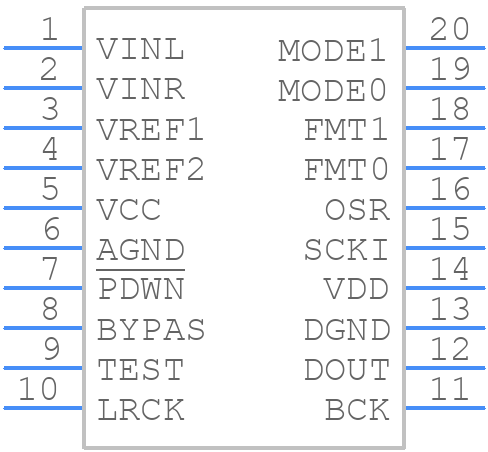

PCM1803DBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1803DBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0020A
click to zoom
3D Models
PCM1803DBR - Texas Instruments - 3D model - Small Outline Packages - DB0020A
click to zoom

PCM1803DBR Details

  • Manufacturer Part Number:

    PCM1803DBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog Input Voltage-Max:

    3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.096 MHz

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1803DBR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signals. This ensures proper device operation and prevents damage to the device.
  • The analog input filter should be designed to reject noise and interference above 20 kHz. A simple RC filter with a cutoff frequency around 10 kHz to 15 kHz is recommended. The filter should also be designed to minimize signal attenuation and distortion.
  • The recommended clock frequency for the PCM1803DBR is between 256 fs and 512 fs, where fs is the sampling frequency. This ensures proper device operation and minimizes jitter and noise.
  • The digital output data from the PCM1803DBR is in 24-bit two's complement format. The data should be handled as unsigned data, and the most significant bit (MSB) should be used as the sign bit. The data should also be processed in a way that maintains the correct byte alignment.
  • The recommended layout and routing for the PCM1803DBR involves keeping the analog and digital signals separate, using a ground plane to reduce noise, and minimizing the length of the analog input traces. The device should also be placed close to the analog input signals to minimize noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1803DBR Overview

Use the download button to access the PCM1803DBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18, or try a keyword search, such as Analog to Digital Converters
