PCM1820IRTER - Texas Instruments

Description: PCM1820IRTER

Download PCM1820IRTER Model

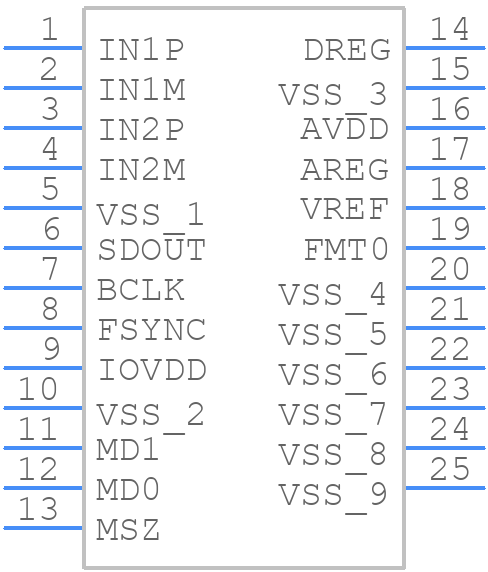

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCM1820IRTER - Texas Instruments PCB footprint - Other - Other - RTE0020A
click to zoom
3D Models
PCM1820IRTER - Texas Instruments  - 3D model - Other - RTE0020A
click to zoom

PCM1820IRTER Details

  • Manufacturer Part Number:

    PCM1820IRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PCM1820IRTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To configure the PCM1820 for master clock mode, set the MCLK pin to the desired clock frequency, and set the M/S pin to logic high. This will enable the internal clock generator.
  • The maximum input signal level for the ADC is 2.5 Vrms. Exceeding this level may result in signal distortion or clipping.
  • To optimize the PCB layout, keep the analog and digital signal traces separate, use a solid ground plane, and place decoupling capacitors close to the power pins. This will help minimize noise and ensure reliable operation.
  • The recommended clock frequency for the PCM1820 is 256 fs (where fs is the sampling frequency). This ensures that the ADC operates within its specified performance range.
