PCM1822IRTER - Texas Instruments

Description: Audio A/D Converter ICs Stereo, 117-dB SNR, 192-kHz, low-power, hardware-controlled, audio ADC 20-WQFN -40 to 125

Download PCM1822IRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

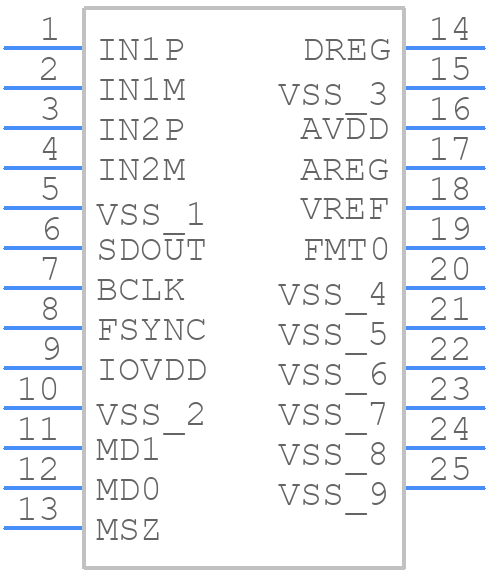

PCM1822IRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1822IRTER - Texas Instruments PCB footprint - Other - Other - RTE0020A
click to zoom
3D Models
PCM1822IRTER - Texas Instruments - 3D model - Other - RTE0020A
click to zoom

PCM1822IRTER Details

  • Manufacturer Part Number:

    PCM1822IRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PCM1822IRTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital power supplies (DVCC and OSCVCC). This ensures that the analog and digital circuits are properly initialized.
  • To optimize the PCB layout, keep the analog and digital power supplies separate, use a solid ground plane, and minimize the length of the analog signal traces. Also, place the analog and digital components on opposite sides of the board to reduce noise coupling.
  • The PCM1822 supports clock frequencies up to 256 fs (where fs is the sampling frequency). However, the maximum clock frequency may be limited by the specific application and the quality of the clock source.
  • To configure the PCM1822 for master clock mode, connect the MCLK pin to a clock source, set the MCLKDIV pin to the desired clock division ratio, and ensure that the BCLK pin is not connected to an external clock source.
  • The recommended termination for the digital output pins is a 10-ohm to 20-ohm series resistor, followed by a 100-pF to 200-pF capacitor to ground. This helps to reduce electromagnetic interference (EMI) and improve signal integrity.
