PCM1851APJT - Texas Instruments

Description: 101dB SNR Stereo ADC With 6x2 Channel MUX and PGA

Download PCM1851APJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

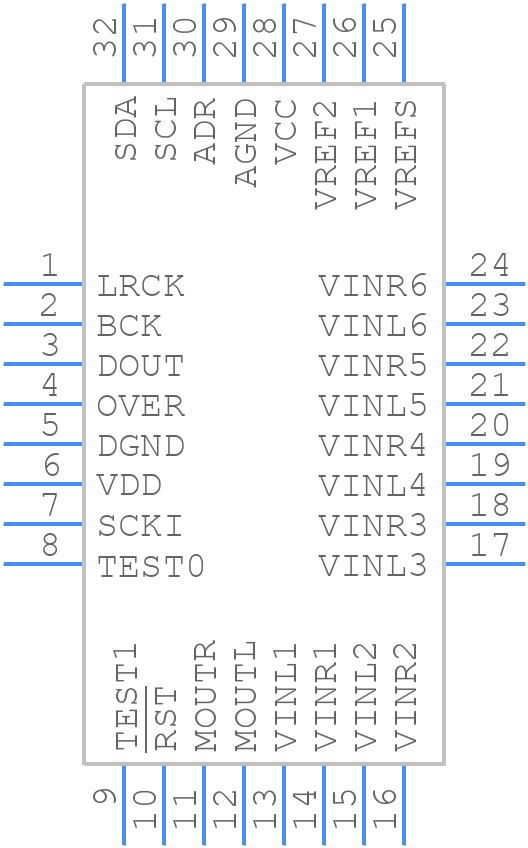

PCM1851APJT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1851APJT - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PJT (S-PQFP–N32)
click to zoom
3D Models
PCM1851APJT - Texas Instruments - 3D model - Quad Flat Packages - PJT (S-PQFP–N32)
click to zoom

PCM1851APJT Details

  • Manufacturer Part Number:

    PCM1851APJT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    GREEN, PLASTIC, TQFP-32

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    12

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.096 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

PCM1851APJT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures proper internal biasing and prevents any potential latch-up conditions.
  • To minimize noise and EMI, it is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces as short as possible. Additionally, use a ferrite bead or a 10-ohm resistor in series with the VCC pin to filter out high-frequency noise.
  • The maximum allowed input voltage for the PCM1851APJT is 2.5Vrms, which is the maximum analog input voltage that can be applied to the device without causing damage or distortion.
  • To configure the PCM1851APJT for master mode operation, connect the MCLK pin to an external clock source, and set the BCLK pin to the desired bit clock frequency. Additionally, set the WS pin to the desired word select frequency, and configure the serial data interface pins (SDI and SDO) accordingly.
  • The typical latency of the PCM1851APJT is around 12-15 clock cycles, depending on the specific configuration and operating mode. This latency is due to the internal processing and filtering of the analog-to-digital conversion process.
