Texas Instruments provides a recommended PCB layout in the application note SLAA642, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The PCM1860QDBTRQ1 can be configured for different audio sampling rates using the I2C interface. The device has a programmable clock generator that allows the user to set the sampling rate, word length, and other audio parameters. Refer to the datasheet and application notes for specific register settings and configuration examples.
The maximum power consumption of PCM1860QDBTRQ1 is approximately 120 mW. To reduce power consumption, the device has a power-down mode that can be enabled through the I2C interface. Additionally, the user can optimize the clock frequency, reduce the voltage supply, and use power-saving features such as dynamic voltage scaling to minimize power consumption.
Common issues with PCM1860QDBTRQ1 can be troubleshooted by checking the PCB layout, ensuring proper power supply decoupling, and verifying the clock and audio signal routing. Additionally, the user can use tools such as oscilloscopes and audio analyzers to measure the audio signal and identify sources of noise or distortion. Texas Instruments also provides application notes and technical support resources to help troubleshoot and resolve issues.
Yes, the PCM1860QDBTRQ1 is a flexible audio codec that can be used with a variety of audio codecs and digital signal processors. It supports multiple audio interfaces, including I2S, TDM, and DSP modes, and can be easily integrated with popular audio processors and codecs from Texas Instruments and other manufacturers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1860QDBTRQ1 Overview

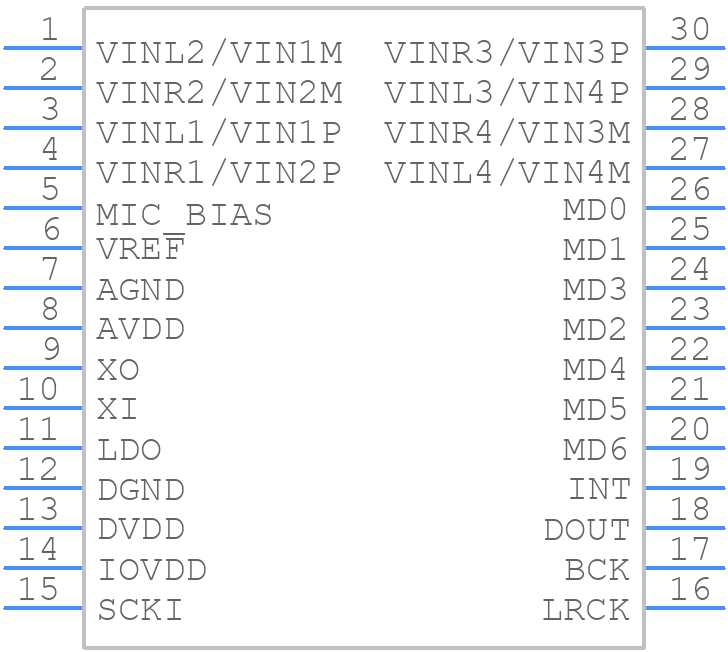

Use the download button to access the PCM1860QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18,
or try a keyword search, such as Analog to Digital Converters
