PCM1861DBT - Texas Instruments

Description: 110dB 2-Channel Hardware-Controlled Audio ADC With Universal Front End

Download PCM1861DBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

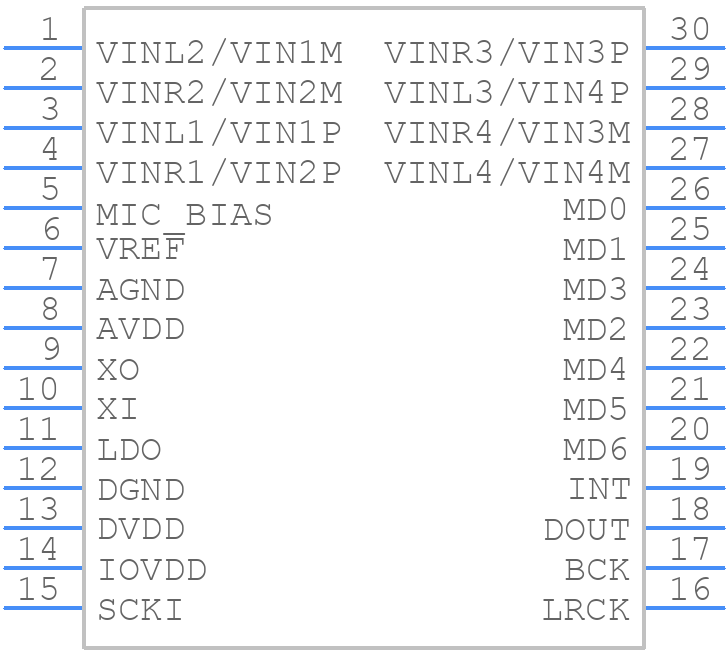

Symbol
PCM1861DBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1861DBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0030A
click to zoom
3D Models
PCM1861DBT - Texas Instruments - 3D model - Small Outline Packages - DBT0030A
click to zoom

PCM1861DBT Details

  • Manufacturer Part Number:

    PCM1861DBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-30

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4 V

  • Analog Input Voltage-Min:

    -0.0195 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM1861DBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents latch-up.
  • The analog input filter should be designed to reject noise and aliasing. A 3rd-order Butterworth filter with a cutoff frequency of 20 kHz to 30 kHz is recommended. The filter should also be designed to match the impedance of the input signal.
  • The recommended clocking scheme is to use a single clock source for both the analog-to-digital converter (ADC) and the digital signal processor (DSP). The clock frequency should be at least 256 times the sampling frequency.
  • Clock jitter can be minimized by using a high-quality clock source, such as a crystal oscillator, and by using a clock buffer to isolate the clock signal from noise. Additionally, the PCM1861DBT has a built-in clock jitter attenuator that can be enabled to reduce the effects of clock jitter.
  • The recommended layout and routing for the PCM1861DBT involves separating the analog and digital power supplies, using a star-ground configuration, and minimizing the length of the analog input traces. Additionally, the digital output traces should be routed away from the analog input traces to minimize noise coupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1861DBT Overview

Use the download button to access the PCM1861DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18, or try a keyword search, such as Analog to Digital Converters
