PCM1862DBT - Texas Instruments

Description: 103dB 2-Channel Software-Controlled Audio ADC With Universal Front End

Download PCM1862DBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

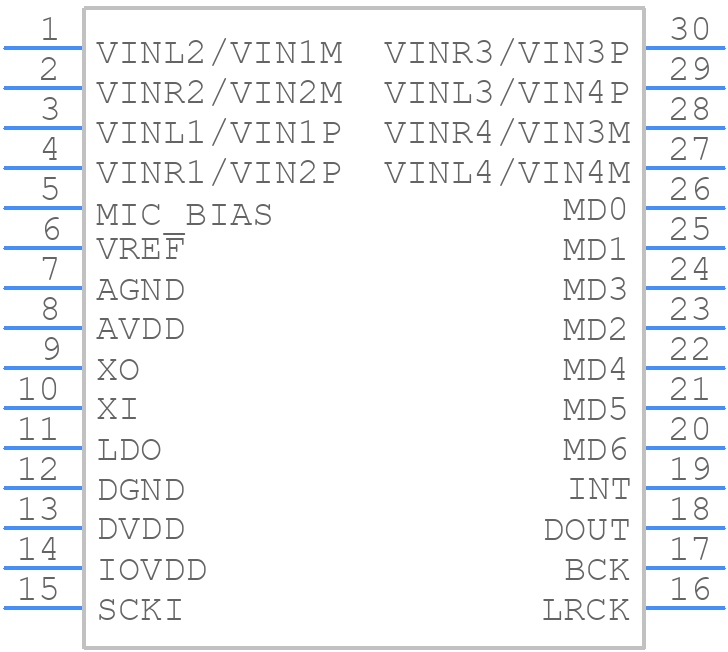

Symbol
PCM1862DBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1862DBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom
3D Models
PCM1862DBT - Texas Instruments - 3D model - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom

PCM1862DBT Details

  • Manufacturer Part Number:

    PCM1862DBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-30

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4 V

  • Analog Input Voltage-Min:

    -0.0195 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM1862DBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures proper device operation and prevents latch-up.
  • The analog input filter should be optimized based on the specific application requirements. A good starting point is to use a 1st-order RC filter with a cutoff frequency around 100 kHz to 200 kHz. The filter components should be chosen to minimize noise and distortion.
  • The recommended clocking scheme is to use a single clock source for both the analog-to-digital converter (ADC) and the digital-to-analog converter (DAC). The clock frequency should be at least 256 times the sampling frequency to ensure proper device operation.
  • The digital output data from the PCM1862DBT is in 2's complement format. The data should be processed and formatted according to the specific application requirements, taking into account the sampling frequency, bit depth, and data format.
  • The PCM1862DBT has a thermal pad that should be connected to a solid ground plane to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Additionally, the PCB should be designed to minimize thermal resistance and ensure good airflow.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1862DBT Overview

Use the download button to access the PCM1862DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
