PCM1863DBT - Texas Instruments

Description: 110dB 2-Channel Software-Controlled Audio ADC With Universal Front End

Download PCM1863DBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

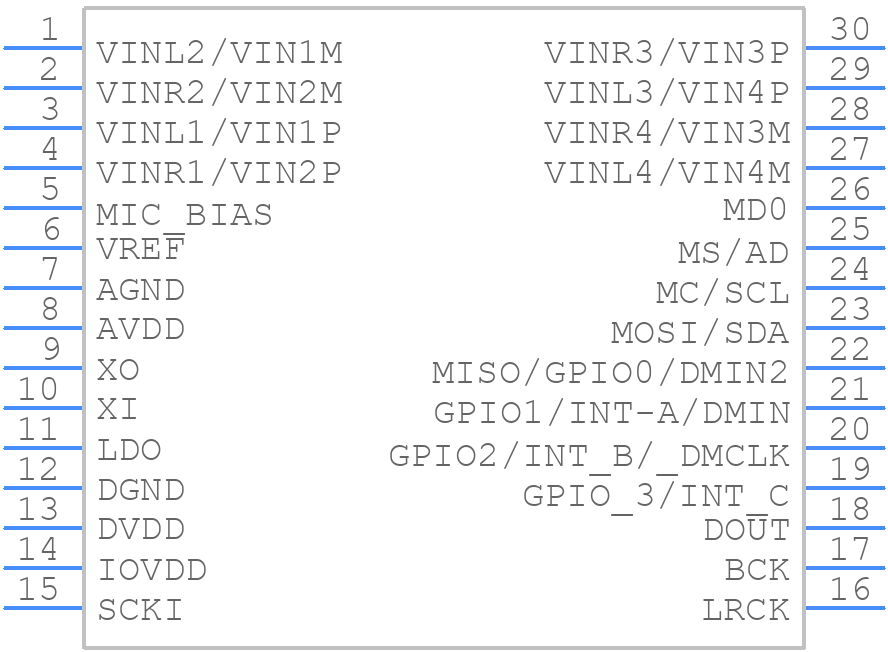

Symbol
PCM1863DBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1863DBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom
3D Models
PCM1863DBT - Texas Instruments - 3D model - Small Outline Packages - DBT (R-PDSO-G30)
click to zoom

PCM1863DBT Details

  • Manufacturer Part Number:

    PCM1863DBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM1863DBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up correctly.
  • The analog input filter should be optimized based on the specific application requirements. A good starting point is to use a 1st-order RC filter with a cutoff frequency of around 100 kHz to 200 kHz. The filter components should be chosen to minimize noise and distortion.
  • The maximum input signal amplitude that the PCM1863DBT can handle is 2.5 Vrms. Exceeding this amplitude may result in distortion and decreased performance.
  • To configure the PCM1863DBT for differential input mode, connect the positive input signal to the INP pin and the negative input signal to the INN pin. Ensure that the input common-mode voltage is within the recommended range of 0.5 V to 2.5 V.
  • The recommended clock frequency for the PCM1863DBT is 256 fs, where fs is the sampling frequency. This ensures that the ADC operates within its specified performance range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1863DBT Overview

Use the download button to access the PCM1863DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
