Texas Instruments provides a recommended layout and routing guide in the PCM1863QDBTRQ1 datasheet, but it's essential to follow good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing signal trace lengths.
To optimize performance, ensure proper power supply decoupling, use a low-ESR capacitor for the AVDD pin, and minimize noise on the analog input pins. Additionally, use a high-quality clock source and ensure the clock signal is clean and stable.
The maximum input signal amplitude that the PCM1863QDBTRQ1 can handle is 2.5Vpp differential, but it's recommended to keep the input signal amplitude below 2Vpp to ensure optimal performance and prevent distortion.
The PCM1863QDBTRQ1 supports multiple sampling rates, including 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz. To configure the device for a specific sampling rate, use the appropriate clock frequency and configure the device's control registers according to the datasheet.
The power consumption of the PCM1863QDBTRQ1 depends on the operating mode and clock frequency. To reduce power consumption, use the device's power-down modes, reduce the clock frequency, and optimize the power supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1863QDBTRQ1 Overview

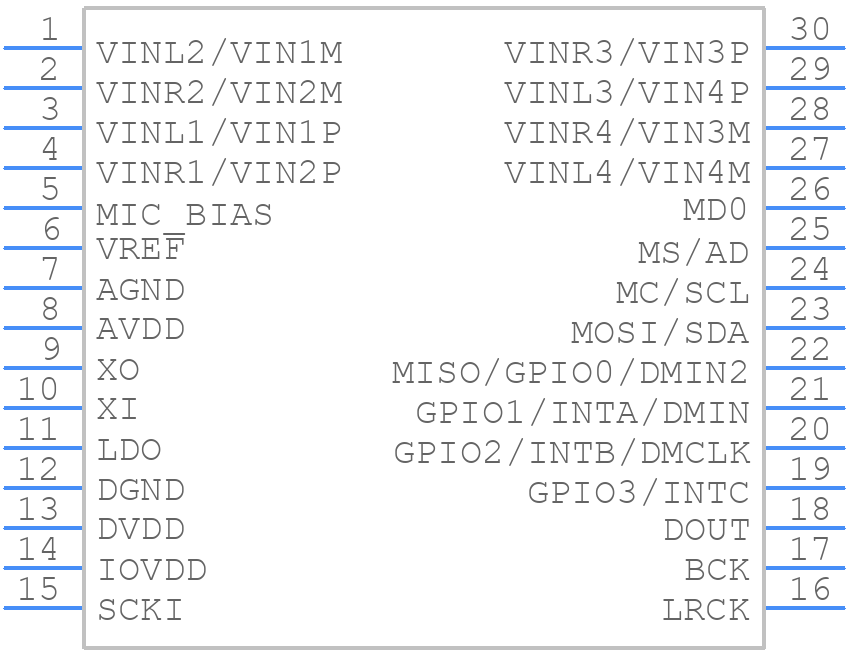

Use the download button to access the PCM1863QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
