PCM1865DBTR - Texas Instruments

Description: 110dB 4-Channel Software-Controlled Audio ADC With Universal Front End

Download PCM1865DBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

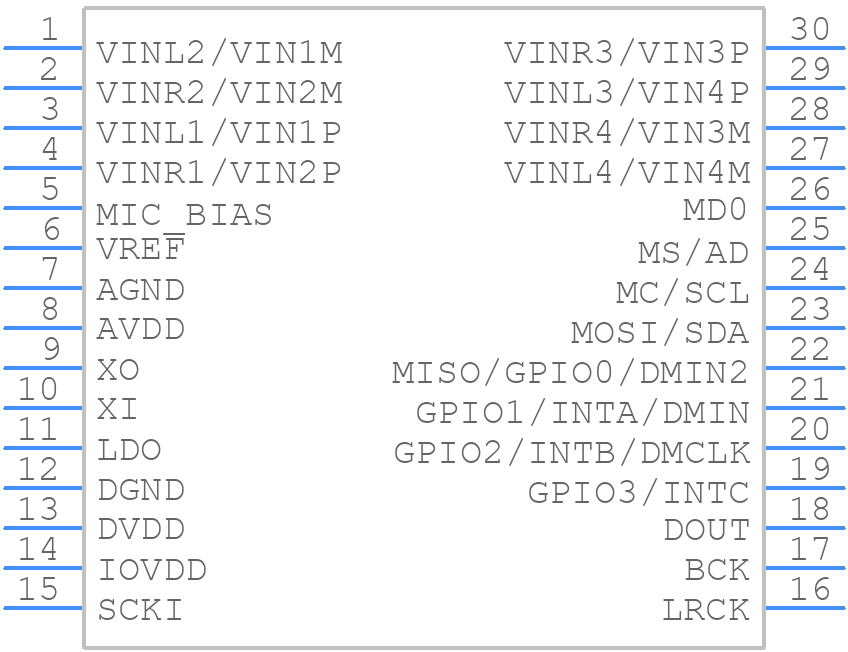

Symbol
PCM1865DBTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1865DBTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PCM1863QDBTRQ1
click to zoom
3D Models
PCM1865DBTR - Texas Instruments - 3D model - Small Outline Packages - PCM1863QDBTRQ1
click to zoom

PCM1865DBTR Details

  • Manufacturer Part Number:

    PCM1865DBTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM1865DBTR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
  • To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and place the analog and digital components on opposite sides of the board. Also, keep the clock and data lines as short as possible and away from noise sources.
  • The PCM1865 supports clock frequencies up to 50 MHz, but the maximum frequency may vary depending on the specific application and system requirements.
  • The PCM1865 can be configured for master or slave mode by setting the appropriate bits in the control register. In master mode, the PCM1865 generates the clock signal, while in slave mode, it receives the clock signal from an external source.
  • The recommended decoupling capacitor value is 0.1 μF to 1 μF, depending on the specific application and system requirements. The capacitor should be placed as close as possible to the power pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1865DBTR Overview

Use the download button to access the PCM1865DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
