Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The datasheet provides a recommended layout and routing guide, but it's essential to consult with a PCB design expert to ensure optimal performance.
To optimize performance in a noisy environment, ensure proper shielding, use a low-pass filter on the input, and consider using a common-mode choke on the power supply lines. Additionally, use a low-ESR capacitor on the VDD pin and a 10uF capacitor on the AVDD pin.
The PCM1865QDBTRQ1 can support clock frequencies up to 50 MHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to consult with a clocking expert to ensure optimal performance.
To troubleshoot issues, start by verifying the power supply voltage, clock frequency, and input signal integrity. Use an oscilloscope to check the output signal and verify that it meets the expected specifications. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the internal biasing and reference circuits are properly initialized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1865QDBTRQ1 Overview

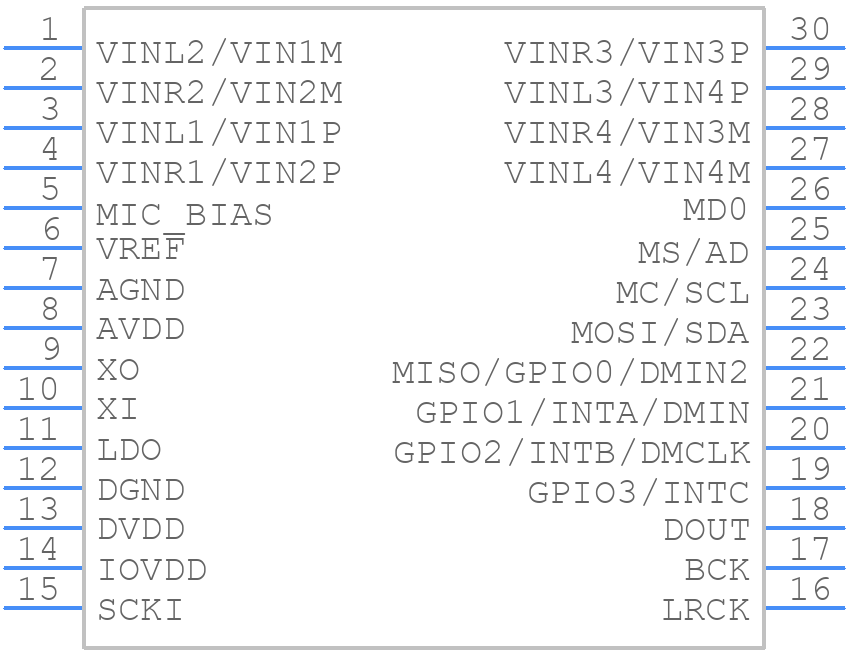

Use the download button to access the PCM1865QDBTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18,
or try a keyword search, such as Analog to Digital Converters
