PCM2707PJT - Texas Instruments

Description: DAC Dual Delta-Sigma 16-Bit 32-Pin TQFP PCM2707PJT, Audio DAC Dual 16 bit-, 48ksps ±8%FSR Serial, 32-Pin TQFP

Download PCM2707PJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

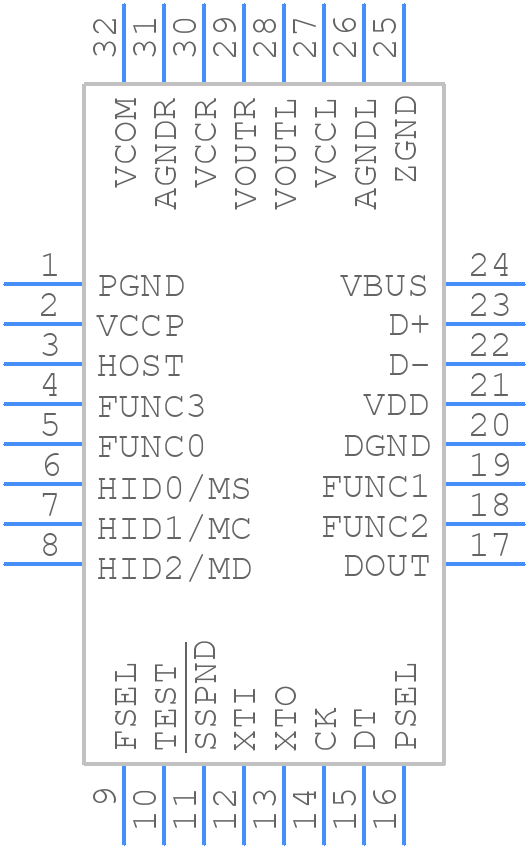

PCM2707PJT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2707PJT - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PJT (S-PQFP–N32)
click to zoom
3D Models
PCM2707PJT - Texas Instruments - 3D model - Quad Flat Packages - PJT (S-PQFP–N32)
click to zoom

PCM2707PJT Details

  • Manufacturer Part Number:

    PCM2707PJT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    1.98 V

  • Analog Output Voltage-Min:

    1.65 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    46 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

PCM2707PJT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • To configure the PCM2707PJT for master mode operation, set the MCLK pin as the clock source, and connect the BCLK and WCLK pins to the corresponding clock signals. Additionally, set the MS bit in the control register to '1' to enable master mode.
  • The maximum allowed capacitance on the VREF pin is 10nF. Exceeding this value may affect the device's performance and accuracy.
  • The PCM2707PJT's digital output data format is I2S (Inter-IC Sound). The device outputs 24-bit or 16-bit data, depending on the configuration, in a MSB-first format. The data is transmitted on the DOUT pin, with the clock signal on the BCLK pin.
  • It is recommended to separate the analog and digital signal traces on the PCB, and to use a ground plane to minimize noise and interference. Additionally, use short, direct traces for the analog signals, and avoid routing them near the digital signals or clock lines.
