PCM2900EG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - PCM2900EG4 . - Audio Codec, USB Interface, Stereo, 2, 2, 0 °C, 70 °C, 48 kSPS

Download PCM2900EG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

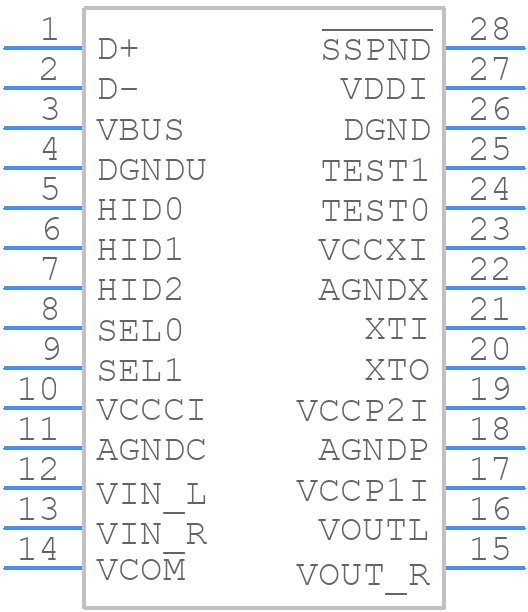

PCM2900EG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2900EG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2900EG4 - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2900EG4 Details

  • Manufacturer Part Number:

    PCM2900EG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO REQUIRES 3.25V TO 3.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2900EG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly and the device is properly initialized.
  • To configure the PCM2900EG4 for master mode operation, set the M/S pin high, and ensure that the BCK pin is driven by the PCM2900EG4. The device will then generate the clock signals for the audio interface.
  • The maximum clock frequency supported by the PCM2900EG4 is 50 MHz. However, the recommended clock frequency is 12.288 MHz for 44.1 kHz audio sampling rate, and 24.576 MHz for 48 kHz audio sampling rate.
  • The PCM2900EG4 has a built-in FIFO buffer that can be enabled by setting the FIFOEN bit in the control register. The FIFO buffer is 256 words deep and can be used to buffer audio data during transmission or reception.
  • The VREF pin is used to set the reference voltage for the analog-to-digital converter (ADC) and digital-to-analog converter (DAC) in the PCM2900EG4. The recommended voltage for VREF is 2.5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM2900EG4 Overview

Use the download button to access the PCM2900EG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM29, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
