PCM2902BDBR - Texas Instruments

Description: Stereo Audio Interface 16 b USB 28-SSOP

Download PCM2902BDBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

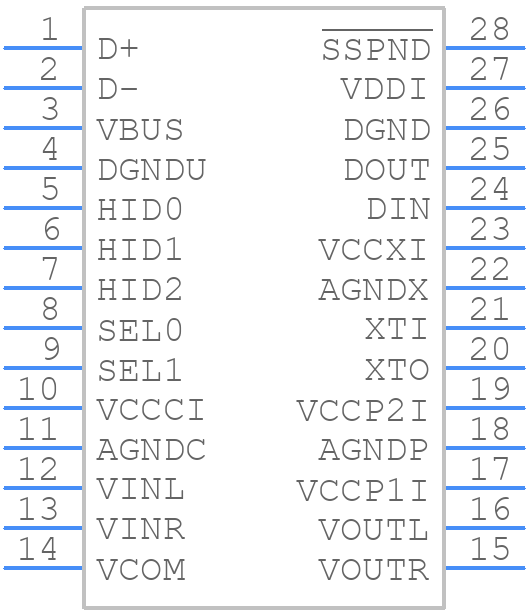

Symbol
PCM2902BDBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2902BDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2902BDBR - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2902BDBR Details

  • Manufacturer Part Number:

    PCM2902BDBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    IT ALSO REQUIRES 3.1V TO 3.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2902BDBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (VAA and VCCO). This ensures that the internal voltage regulators are powered up correctly.
  • To configure the PCM2902BDBR for master mode operation, set the M/S pin high and the BCK pin as the clock output. The device will then generate the clock signal for the audio interface.
  • The maximum clock frequency supported by the PCM2902BDBR is 50 MHz. However, the recommended clock frequency is 12.288 MHz for 44.1 kHz audio sampling rate.
  • The PCM2902BDBR outputs digital audio data in I2S format. The data is output on the DOUT pin, and the clock signal is output on the BCK pin. The data is MSB-first, and the word length is 16 bits or 24 bits, depending on the configuration.
  • The analog power supplies (VAA and VCCO) are used to power the analog-to-digital converter (ADC) and the digital-to-analog converter (DAC) in the PCM2902BDBR. These power supplies should be decoupled from the digital power supply (VCC) to minimize noise and ensure proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM2902BDBR Overview

Use the download button to access the PCM2902BDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM29, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
