PCM2903BDB - Texas Instruments

Description: Stereo Audio Interface 16 b USB 28-SSOP

Download PCM2903BDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

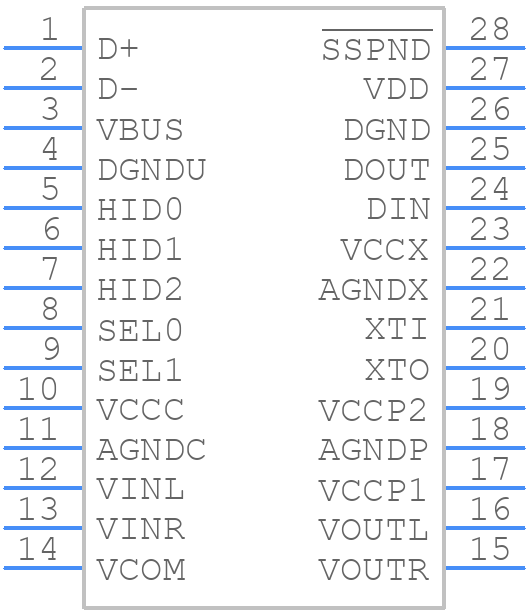

PCM2903BDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2903BDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2903BDB - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2903BDB Details

  • Manufacturer Part Number:

    PCM2903BDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2903BDB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators are powered up correctly and the device is properly initialized.
  • To configure the PCM2903BDB for master mode operation, set the M/S pin high, and ensure that the BCK pin is driven by the master clock signal. Additionally, configure the I2S format and clock frequency using the I2C interface.
  • The maximum clock frequency supported by the PCM2903BDB is 50 MHz. However, the actual clock frequency used depends on the specific application and the requirements of the audio codec.
  • To handle clock jitter and skew, use a high-quality clock source, and ensure that the clock signal is properly terminated and routed. Additionally, use the PCM2903BDB's built-in clock jitter attenuator feature to reduce the effects of clock jitter.
  • The recommended layout and routing for the PCM2903BDB involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, ensure that the power supply decoupling capacitors are placed close to the device.
