PCM2903CDBR - Texas Instruments

Description: Stereo USB1.1 CODEC with line-out and S/PDIF I/O, Self-powered (HID Interface)

Download PCM2903CDBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

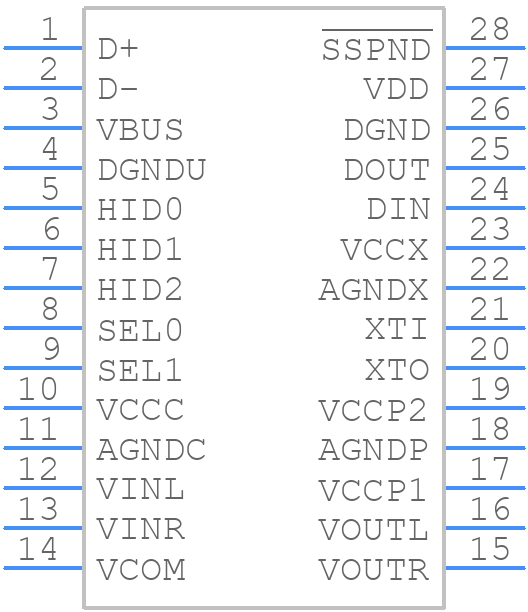

PCM2903CDBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2903CDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2903CDBR - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2903CDBR Details

  • Manufacturer Part Number:

    PCM2903CDBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2903CDBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This ensures proper device operation and prevents latch-up.
  • To optimize the analog input impedance, use a series resistor (Rs) and a capacitor (Cs) in parallel with the input signal. The values of Rs and Cs depend on the specific application and input signal characteristics.
  • The maximum allowed clock jitter for the PCM2903CDBR is 100 ps. Exceeding this value may result in decreased performance and increased errors.
  • Yes, the PCM2903CDBR can be used with separate analog and digital power supplies. However, it is essential to ensure that the power supplies are properly decoupled and filtered to prevent noise and interference.
  • The PCM2903CDBR outputs data in a 24-bit, MSB-first, two's complement format. The digital output data can be handled using a microcontroller or a dedicated audio codec interface.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM2903CDBR Overview

Use the download button to access the PCM2903CDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM29, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
