PCM2904DB - Texas Instruments

Description: Stereo USB1.1 CODEC with line-out, Bus-powered (HID Interface + 500mA USB Current)

Download PCM2904DB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

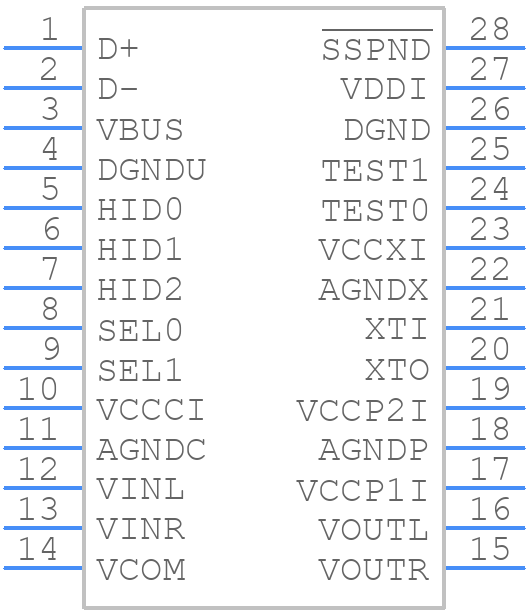

PCM2904DB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2904DB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
PCM2904DB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

PCM2904DB Details

  • Manufacturer Part Number:

    PCM2904DB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3.25 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2904DB Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This sequence helps prevent latch-up and ensures proper device operation.
  • To optimize the analog input impedance, use a series resistor (Rs) and a capacitor (Cs) in parallel to create a low-pass filter. The values of Rs and Cs depend on the specific application and frequency range of interest.
  • The maximum allowed clock jitter for the PCM2904DB is 100 ps RMS. Exceeding this value may affect the device's performance and accuracy.
  • Yes, the PCM2904DB can be used with separate analog and digital power supplies. However, it's essential to ensure that the analog power supply is clean and free from digital noise to maintain the device's performance.
  • The MCLK and BCLK signals should be treated as high-speed signals and routed carefully to minimize noise and jitter. Use a low-impedance source and a terminated transmission line to ensure signal integrity.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

PCM2904DB Overview

Use the download button to access the PCM2904DB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM29, or try a keyword search, such as Other Consumer ICs
