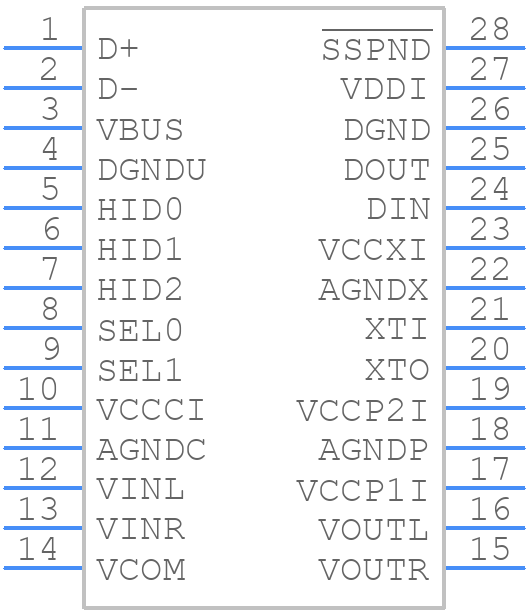

PCM2906CDBR - Texas Instruments

PCM2906CDBR Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the PCM2906CDBR?
  The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This ensures proper device operation and prevents latch-up.
• How do I optimize the analog input impedance for the PCM2906CDBR?
  To optimize the analog input impedance, use a series resistor (Rs) and a capacitor (Cs) in parallel with the input signal. The values of Rs and Cs depend on the specific application and input signal characteristics.
• What is the maximum clock frequency supported by the PCM2906CDBR?
  The maximum clock frequency supported by the PCM2906CDBR is 50 MHz. However, the actual clock frequency may be limited by the specific application and system requirements.
• How do I handle clock jitter and skew in the PCM2906CDBR?
  To handle clock jitter and skew, use a high-quality clock source, and consider using a clock buffer or jitter attenuator. Additionally, ensure that the clock signal is properly terminated and routed to minimize signal degradation.
• What is the recommended layout and routing for the PCM2906CDBR?
  For optimal performance, use a multi-layer PCB with a solid ground plane, and route the analog and digital signals separately. Keep the analog and digital power supplies separate, and use decoupling capacitors to minimize noise and interference.
