The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (VAA and VBB). This ensures that the internal voltage regulators are powered up correctly.
To optimize ADC performance, ensure that the analog input signal is within the recommended range, and that the clock frequency is set correctly. Additionally, consider using the built-in calibration feature and adjusting the gain settings to optimize signal-to-noise ratio (SNR) and total harmonic distortion (THD).
The maximum clock frequency for the PCM3000E is 256 fs (frames per second), which corresponds to a clock frequency of 12.288 MHz for 24-bit audio and 12.000 MHz for 16-bit audio.
To minimize clock jitter and skew, use a high-quality clock source, such as a crystal oscillator, and ensure that the clock signal is properly terminated and routed. Additionally, consider using the PCM3000E's built-in clock jitter attenuator feature.
To minimize noise and interference, separate the analog and digital signal traces, and use a ground plane to shield the analog signals. Additionally, keep the analog input signals away from the digital clock and data signals, and use a star-configuration for the power supplies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM3000E Overview

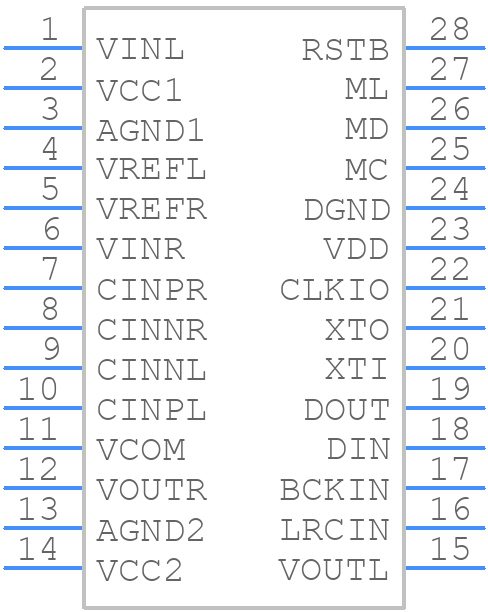

Use the download button to access the PCM3000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM30,
or try a keyword search, such as Other Consumer ICs
