PCM3001E/2K - Texas Instruments

Description: Interface - CODECs SoundPlus Ster Codec 18-bits Ser Intrfc

Download PCM3001E/2K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

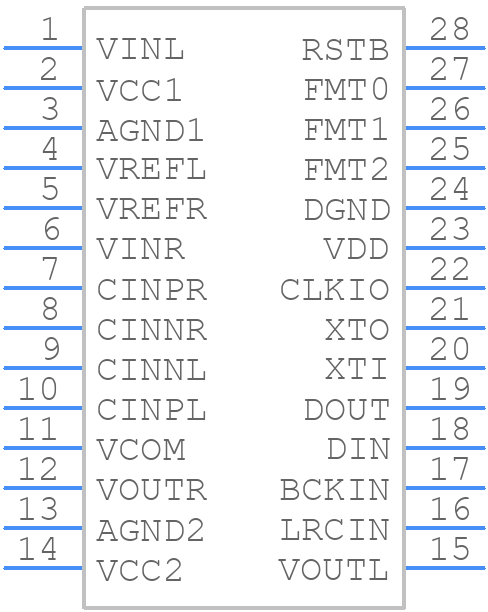

PCM3001E/2K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM3001E/2K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB(R-PDSO-G28)_
click to zoom
3D Models
PCM3001E/2K - Texas Instruments - 3D model - Small Outline Packages - DB(R-PDSO-G28)_
click to zoom

PCM3001E/2K Details

  • Manufacturer Part Number:

    PCM3001E/2K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM3001E/2K Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • The analog input impedance can be optimized by using a buffer amplifier with a low output impedance and a high input impedance. This ensures maximum signal transfer and minimizes signal loss.
  • The maximum clock frequency that can be used with the PCM3001E/2K is 256 fs (fs = 1/sample rate). For example, for a sample rate of 48 kHz, the maximum clock frequency is 12.288 MHz.
  • Clock jitter can be handled by using a high-quality clock source, such as a crystal oscillator, and by using a clock jitter attenuator circuit. Additionally, the PCM3001E/2K has a built-in clock jitter tolerance of ±10%.
  • The recommended layout and routing for the PCM3001E/2K involves keeping the analog and digital signals separate, using a ground plane, and minimizing the length of the clock signal traces. Additionally, the device should be placed close to the analog signal sources and the clock signal source.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM3001E/2K Overview

Use the download button to access the PCM3001E/2K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM30, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
