The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog power supplies (VAA and VDA). This ensures that the internal voltage regulators are powered up correctly.
To optimize performance, ensure that the analog power supplies (VAA and VDA) are well-filtered and decoupled, and that the analog and digital grounds are separated. Additionally, use a low-noise clock source and ensure that the clock signal is properly terminated.
The maximum clock frequency is 256 fs (384 kHz), but it's recommended to use a clock frequency of 128 fs (192 kHz) or lower to ensure optimal performance and to reduce the risk of jitter-related issues.
The PCM3010DBR can be configured for master or slave mode by setting the M/S bit in the control register. In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source.
The recommended layout and routing involves separating the analog and digital sections, using a star-ground configuration, and keeping the analog signals away from the digital signals. Additionally, use short, direct traces for the clock signal and ensure that the power supplies are well-decoupled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM3010DBR Overview

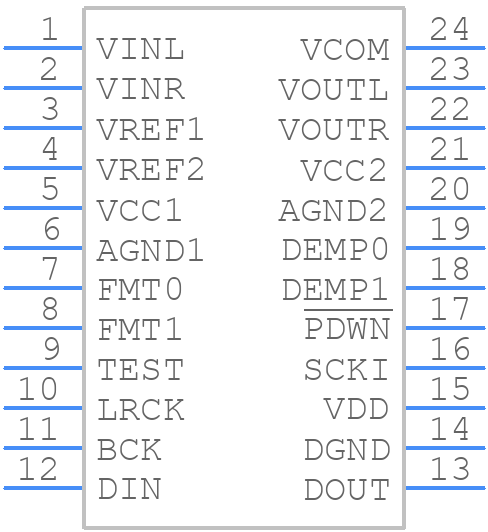

Use the download button to access the PCM3010DBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM30,
or try a keyword search, such as Other Consumer ICs
