PCM3060PWR - Texas Instruments

Description: 24-bit Asynchronous Stereo Audio Codec with 96/192kHz sampling rate

Download PCM3060PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

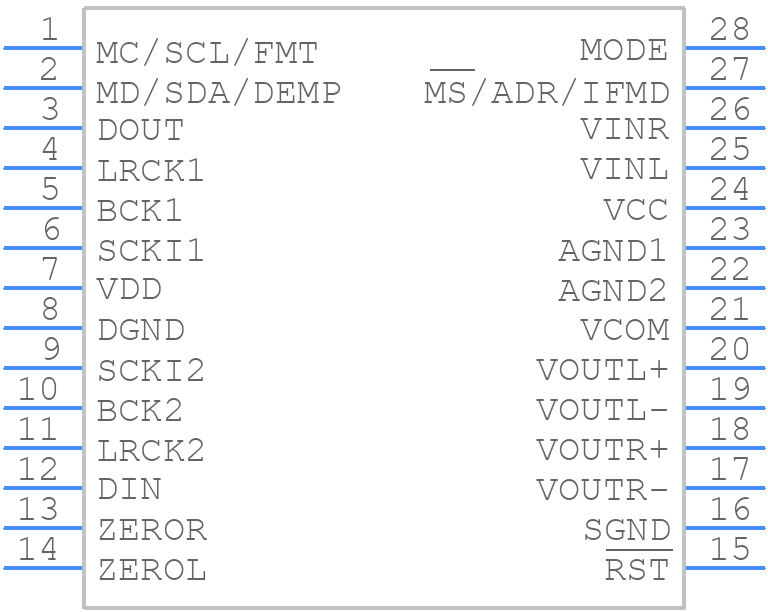

PCM3060PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM3060PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
PCM3060PWR - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

PCM3060PWR Details

  • Manufacturer Part Number:

    PCM3060PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM3060PWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the PCM3060PWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. TI provides a recommended layout in the datasheet and application notes.
  • To optimize performance in noisy environments, use proper shielding, grounding, and filtering techniques. Additionally, consider using the device's built-in noise reduction features, such as the programmable gain amplifier and the adaptive noise cancellation algorithm.
  • The maximum power consumption of the PCM3060PWR is approximately 120 mW when operating at 3.3V and 25°C. However, this can vary depending on the specific application and operating conditions.
  • The PCM3060PWR is designed to operate from a 2.7V to 3.6V power supply. While it's possible to use it with a different voltage supply, it's not recommended as it may affect the device's performance and reliability.
  • The PCM3060PWR has a built-in adaptive echo canceller that can be enabled through the device's registers. TI provides example code and application notes to help implement echo cancellation in various applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM3060PWR Overview

Use the download button to access the PCM3060PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM30, or try a keyword search, such as Other Telecom ICs
