Texas Instruments provides a recommended layout and routing guide in the PCM3060PWRG4 Evaluation Module User's Guide (SLAU595). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
The PCM3060PWRG4 is a highly configurable device. Texas Instruments provides a PCM3060PWRG4 Configuration Tool (PCM3060-CFG) that allows you to generate configuration files for your specific audio application. You can also refer to the PCM3060PWRG4 datasheet and user's guide for more information.
The maximum power consumption of the PCM3060PWRG4 depends on the operating mode and configuration. According to the datasheet, the maximum power consumption is approximately 350 mW in stereo audio mode with a 3.3-V supply voltage. However, this value can vary depending on the specific use case and configuration.
To ensure EMC with the PCM3060PWRG4, follow the guidelines provided in the PCM3060PWRG4 datasheet and user's guide. Additionally, Texas Instruments recommends using a shielded enclosure, minimizing trace lengths, and using decoupling capacitors to reduce electromagnetic radiation.
Yes, the PCM3060PWRG4 is AEC-Q100 qualified, making it suitable for automotive applications. However, you must ensure that your design meets the specific requirements of the automotive industry, including temperature range, vibration, and electromagnetic compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM3060PWRG4 Overview

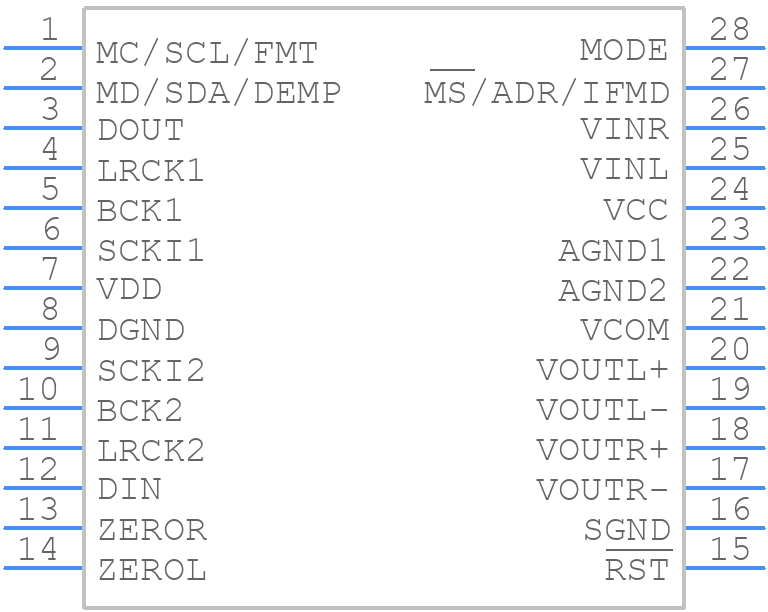

Use the download button to access the PCM3060PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM30,
or try a keyword search, such as Other Telecom ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
