PCM3501E - Texas Instruments

Description: Low Voltage, Low Power, 16-Bit, Mono SoundPlus™ Voice/Modem Codec

Download PCM3501E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

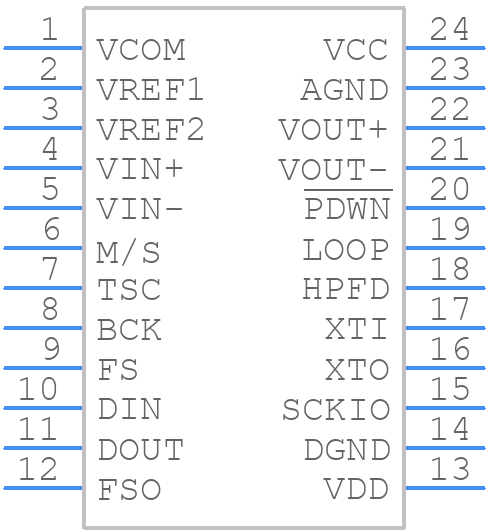

Symbol
PCM3501E - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM3501E - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G24)
click to zoom
3D Models
PCM3501E - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G24)
click to zoom

PCM3501E Details

  • Manufacturer Part Number:

    PCM3501E

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Input-Max:

    3.6 V

  • Filter:

    YES

  • Input Code:

    BINARY/TWOS COMP

  • Input Type:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Linear Coding:

    16-BIT

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Mode:

    SYNCHRONOUS/ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output:

    VOLTAGE

  • Output Code:

    BINARY/TWOS COMP

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM3501E Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the PCM3501E Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The PCM3501E requires a precise clocking scheme to ensure proper operation. TI recommends using a clock source with low jitter and noise, and configuring the clock pins according to the datasheet. Additionally, the clock frequency should be set to 256 times the desired audio sample rate.
  • The maximum power consumption of the PCM3501E depends on the operating mode and clock frequency. According to the datasheet, the maximum power consumption is approximately 120 mW at 3.3 V and 48 kHz sample rate. However, this value can vary depending on the specific application and usage.
  • The PCM3501E has a built-in mute function that can be controlled through the MUTE pin. To implement a mute function, simply tie the MUTE pin to a digital signal that can be controlled by the system. When the MUTE pin is high, the PCM3501E will mute the audio output.
  • Texas Instruments recommends using a decoupling capacitor with a value of 10 uF or greater, placed as close as possible to the power pins of the PCM3501E. This helps to filter out noise and ensure stable operation.
