PCM3794ARHBT - Texas Instruments

Description: Very Low-Power Stereo CODEC with HP Amplifier, notch filters, ALC and 3D Effects

Download PCM3794ARHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

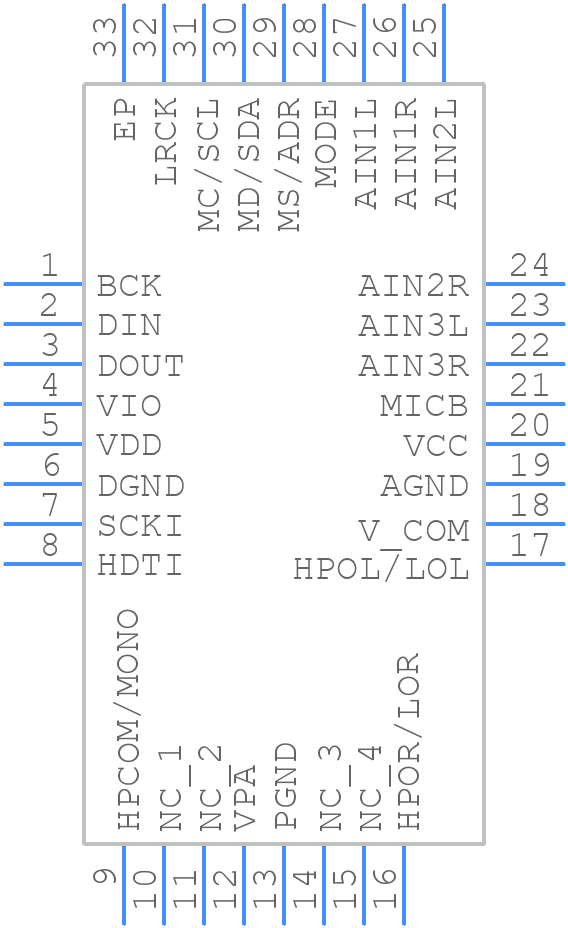

PCM3794ARHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM3794ARHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
PCM3794ARHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

PCM3794ARHBT Details

  • Manufacturer Part Number:

    PCM3794ARHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

PCM3794ARHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in their application note SLAA701, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • TI provides a PCM3794ARHBT evaluation module (EVM) that can be used to evaluate the device's performance in a specific application. The EVM includes a user's guide that provides detailed information on how to optimize the device's performance.
  • The maximum power dissipation of the PCM3794ARHBT is dependent on the operating conditions and the thermal design of the system. TI provides a thermal design guide in their application note SLAA702, which includes information on how to calculate the maximum power dissipation and thermal design considerations.
  • TI provides a troubleshooting guide in their application note SLAA703, which includes common issues and solutions, as well as a debug guide to help identify and resolve problems with the device.
  • TI provides a recommended component list and values in their datasheet and application notes. Additionally, the PCM3794ARHBT EVM includes a bill of materials (BOM) that lists the recommended components and values.
