PCM4220PFBR - Texas Instruments

Description: 123dB SNR Stereo Audio ADC with PCM output

Download PCM4220PFBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

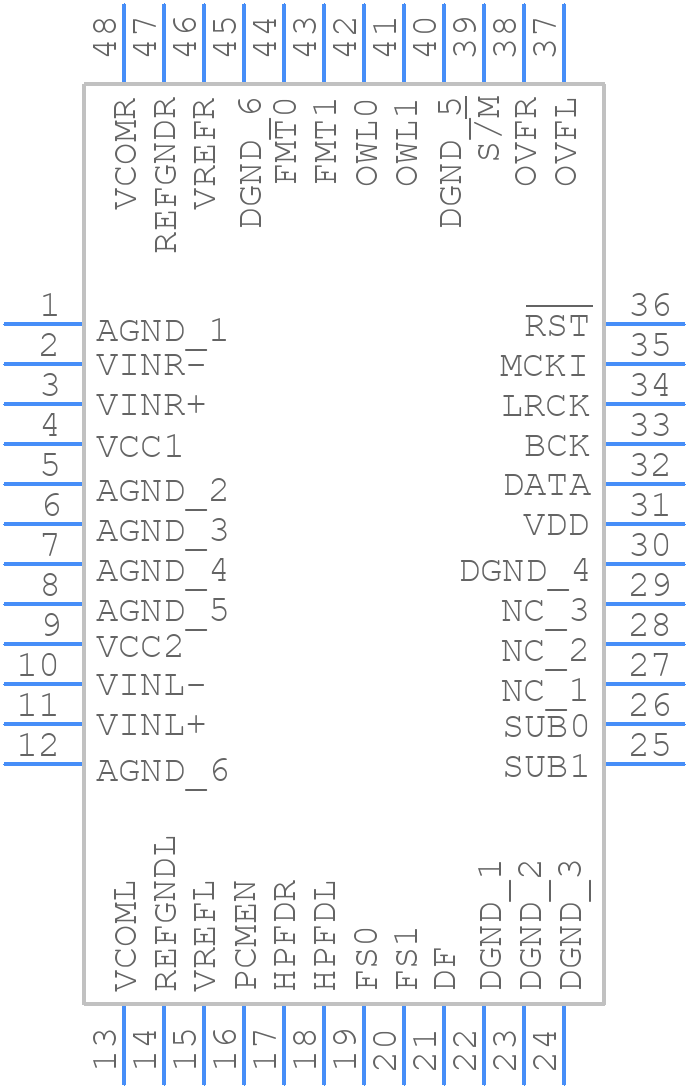

Symbol
PCM4220PFBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM4220PFBR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48) PLASTIC QUAD FLATPACK
click to zoom
3D Models
PCM4220PFBR - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48) PLASTIC QUAD FLATPACK
click to zoom

PCM4220PFBR Details

  • Manufacturer Part Number:

    PCM4220PFBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TFQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.216 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

PCM4220PFBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up correctly.
  • The analog input filter should be optimized for the specific application. A good starting point is to use a 3rd-order Butterworth filter with a cutoff frequency of 10-20 kHz. The filter should be designed to reject noise and aliasing, while allowing the signal of interest to pass through.
  • The maximum clock frequency that can be used with the PCM4220 is 128 MHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
  • The digital output data from the PCM4220 is in 2's complement format. The data should be processed and formatted according to the specific requirements of the application. This may include data alignment, byte swapping, and formatting for transmission or storage.
  • The recommended layout and routing for the PCM4220 involves separating the analog and digital sections of the board, using a solid ground plane, and minimizing noise and interference. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog section.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM4220PFBR Overview

Use the download button to access the PCM4220PFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM42, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
