PCM5142PWR - Texas Instruments

Description: 2V RMS DIRECTPATH 112dB Audio Stereo DAC with PCM interface and fully programmable miniDSP

Download PCM5142PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

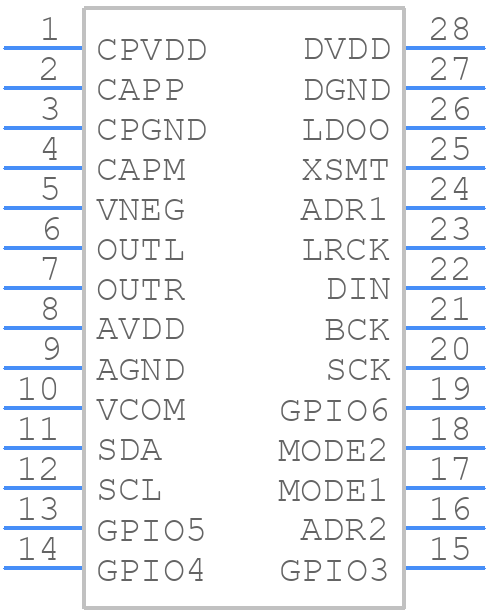

PCM5142PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM5142PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
PCM5142PWR - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

PCM5142PWR Details

  • Manufacturer Part Number:

    PCM5142PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    DAC 32BIT

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.384 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM5142PWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog power supplies (AVDD and DVDD). This ensures that the internal voltage regulators are powered up correctly.
  • To configure the PCM5142PWR for master clock mode, set the MCLK pin as an output by setting the MCLKOE bit in the Clock Control Register (CLK_CNTL). Then, set the desired clock frequency using the MCLKDIV register.
  • The maximum allowed capacitance for the analog output filters is 10nF. Exceeding this value may affect the stability of the output stage.
  • To optimize the PCM5142PWR for low power consumption, use the Power Management Register (PWR_MGMT) to disable unused blocks, reduce the clock frequency, and adjust the voltage regulators. Additionally, use the Dynamic Voltage and Frequency Scaling (DVFS) feature to optimize power consumption based on the system's requirements.
  • To minimize noise and interference, separate the analog and digital signals on the PCB, and use a star-connection for the analog power supplies. Keep the analog signals away from the digital signals, and use a ground plane to reduce noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM5142PWR Overview

Use the download button to access the PCM5142PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM51, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
