FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
120 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
ADPCM CODEC
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
PCM5310PAPR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
To optimize THD+N performance, ensure that the input signal is properly terminated, use a low-noise power supply, and optimize the clock frequency and jitter. Additionally, use the internal PLL to generate the clock signal, and adjust the gain settings to minimize distortion.
The maximum input signal level that the PCM5310PAPR can handle is 2.5Vrms. Exceeding this level may result in distortion and decreased performance.
To configure the PCM5310PAPR for master clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. Then, set the WS pin to the desired word select frequency, and configure the serial data format using the SDIN pin.
The PLL loop filter components (R1, R2, C1, and C2) are used to filter the PLL clock signal and reduce jitter. They help to improve the overall clock signal quality and ensure stable operation of the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
PCM5310PAPR Overview

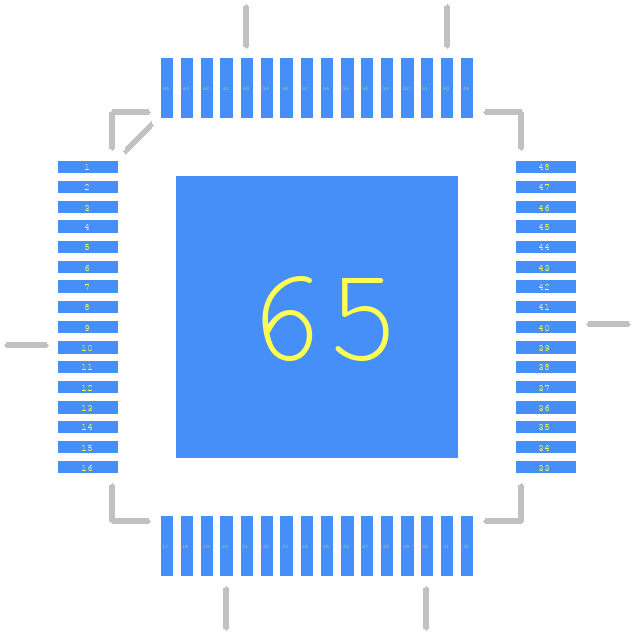

Use the download button to access the PCM5310PAPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM53,
or try a keyword search, such as Codecs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
