PCM56P-K - Texas Instruments

Description: PCM56P-K, Audio DAC 16 bit-, 666ksps ±2%FSR Serial, 16-Pin PDIP

Download PCM56P-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

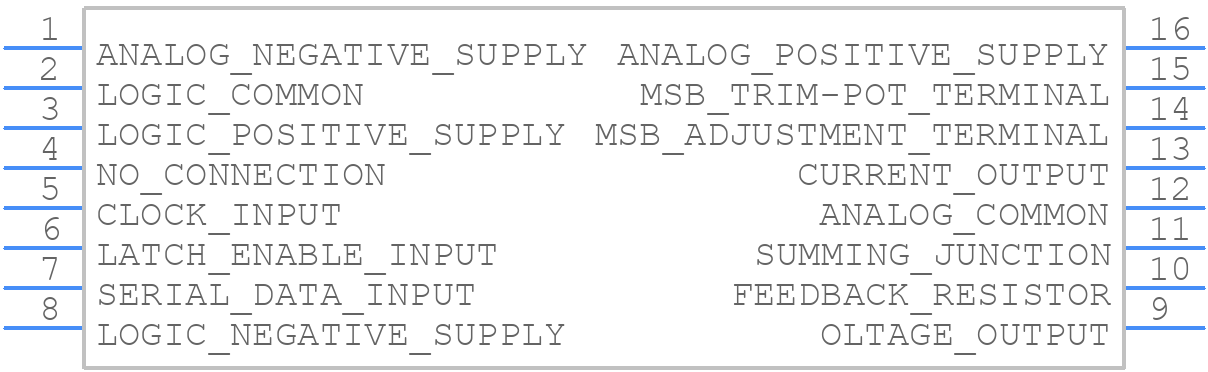

PCM56P-K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM56P-K - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NE Package (R-PDIP-T16)
click to zoom
3D Models
PCM56P-K - Texas Instruments - 3D model - Dual-In-Line Packages - NE Package (R-PDIP-T16)
click to zoom

PCM56P-K Details

  • Manufacturer Part Number:

    PCM56P-K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    3 V

  • Analog Output Voltage-Min:

    -3 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Settling Time-Nom (tstl):

    1.5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

PCM56P-K Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in their application note SLAA382, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The PCM56P-K requires a stable power supply with adequate decoupling capacitors to ensure proper operation. TI recommends using a 5V power supply with 0.1uF and 10uF decoupling capacitors placed close to the device, as well as a 10uF bulk capacitor on the power supply line.
  • The PCM56P-K can operate with clock frequencies up to 25.92 MHz, but the maximum frequency depends on the specific application and system requirements. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency selection.
  • The PCM56P-K is a highly configurable device that can be programmed for different transmission rates and protocols using the device's control registers. TI provides a detailed programming guide in their application note SLAA381, which includes examples and code snippets for common configurations.
  • The PCM56P-K is a high-speed device that can generate significant heat during operation. TI recommends using a heat sink or thermal pad to dissipate heat, and ensuring that the device is operated within the recommended temperature range of 0°C to 70°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM56P-K Overview

Use the download button to access the PCM56P-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
