PCM6120QRTERQ1 - Texas Instruments

Description: Audio A/D Converter ICs Automotive, stereo, 123-dB SNR, 768-kHz, low-power software-controlled audio ADC 20-WQFN -40 to 125

Download PCM6120QRTERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

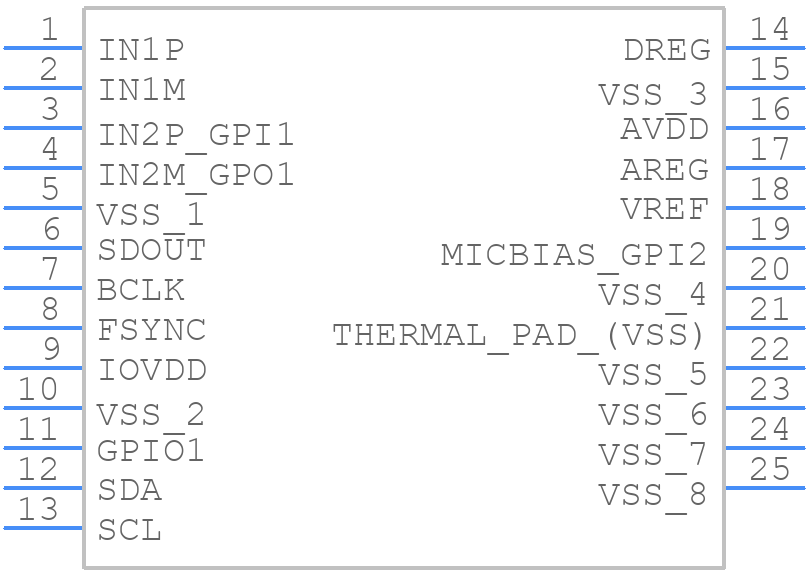

PCM6120QRTERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM6120QRTERQ1 - Texas Instruments PCB footprint - Other - Other - RTE0020A
click to zoom
3D Models
PCM6120QRTERQ1 - Texas Instruments - 3D model - Other - RTE0020A
click to zoom

PCM6120QRTERQ1 Details

  • Manufacturer Part Number:

    PCM6120QRTERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    1.9 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.768 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PCM6120QRTERQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAA534, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The PCM6120 can be configured for different audio formats using the device's control registers. The configuration process is described in the device's datasheet and application notes, and can be done using a microcontroller or other external controller.
  • The maximum clock frequency that can be used with the PCM6120 is 50 MHz, as specified in the device's datasheet. Exceeding this frequency may result in reduced performance or device failure.
  • Proper power supply decoupling is critical for the PCM6120's operation. Texas Instruments recommends using a low-ESR capacitor (e.g., 10 uF) and a 1-ohm resistor in series with the power supply to ensure proper decoupling and reduce noise.
  • The typical power consumption of the PCM6120 is around 120 mW, depending on the operating frequency and mode. This information can be found in the device's datasheet and is important for power budgeting and thermal management.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM6120QRTERQ1 Overview

Use the download button to access the PCM6120QRTERQ1 schematic symbol, PCB footprint, and 3D model.
