Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
To minimize power consumption, ensure that the device is in the correct power-down mode when not in use. Also, adjust the clock frequency and voltage regulator settings according to your application's requirements. Refer to the datasheet for specific power-saving features and settings.
The PCM6360QRTVRQ1 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended thermal design guidelines in the datasheet to prevent overheating.
Use the device's built-in diagnostic features, such as the clock monitoring and synchronization status registers, to identify issues. Also, verify that the clock input signals meet the recommended specifications and that the device is properly configured for the desired clocking mode.
The PCM6360QRTVRQ1 is a high-frequency device, so it's essential to follow good EMI and RFI design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference and radio-frequency interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM6360QRTVRQ1 Overview

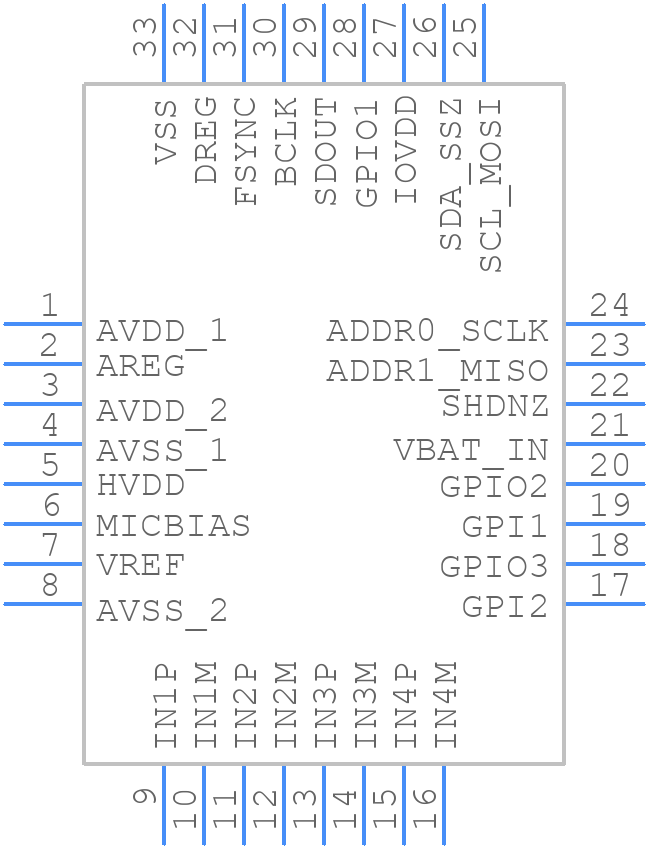

Use the download button to access the PCM6360QRTVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM63,
or try a keyword search, such as Analog to Digital Converters
