Texas Instruments provides a recommended PCB layout in the PCMD3180IRTWR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The PCMD3180IRTWR has multiple power modes, including low-power mode, shutdown mode, and active mode. Configuration is done through the I2C interface, and the specific register settings can be found in the datasheet and application notes.
The PCMD3180IRTWR is rated for operation from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal management and heat sinking to maintain reliable operation.
The PCMD3180IRTWR is designed to withstand moderate vibration, but extreme vibration may affect its performance and reliability. Consider using additional mechanical support or vibration dampening measures in high-vibration applications.
Common issues include incorrect I2C address, bus conflicts, or incorrect clock frequency. Verify the I2C bus configuration, check for bus contention, and ensure the clock frequency is within the specified range (100 kHz to 400 kHz).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCMD3180IRTWR Overview

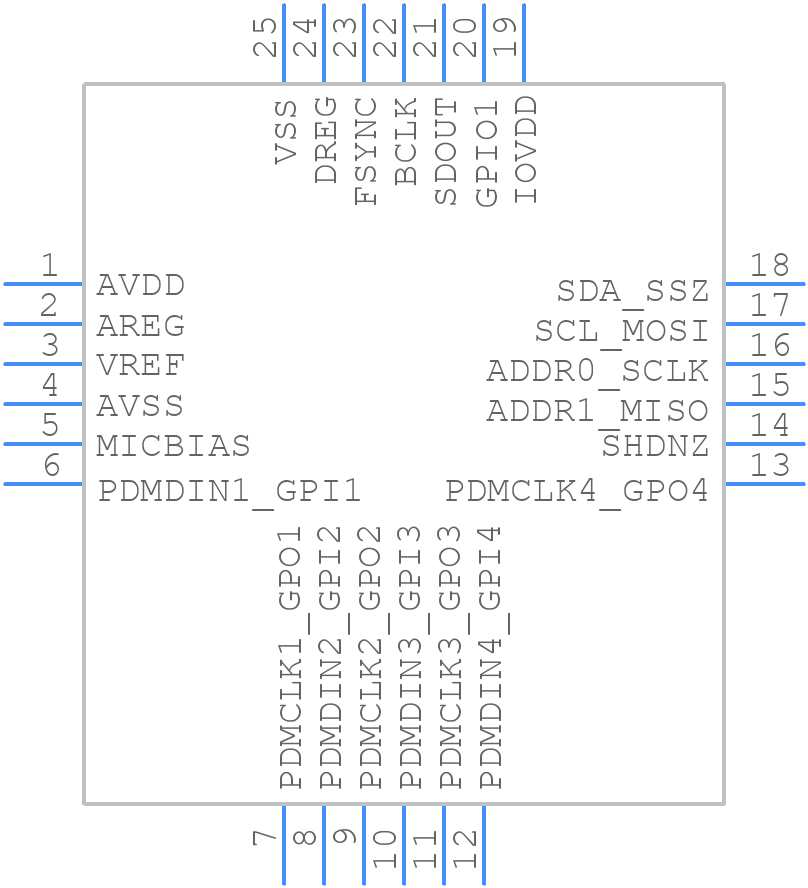

Use the download button to access the PCMD3180IRTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCMD3,
or try a keyword search, such as Other Consumer ICs
