PDA54-11SRWA - Kingbright

Description: LED Displays & Accessories RED DIFFUSED 2 DIGIT ALPHA

Download PDA54-11SRWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PDA54-11SRWA model

Email notifications will be applied after download.

Send part feedback

Symbol

PDA54-11SRWA - Kingbright - PCB symbol

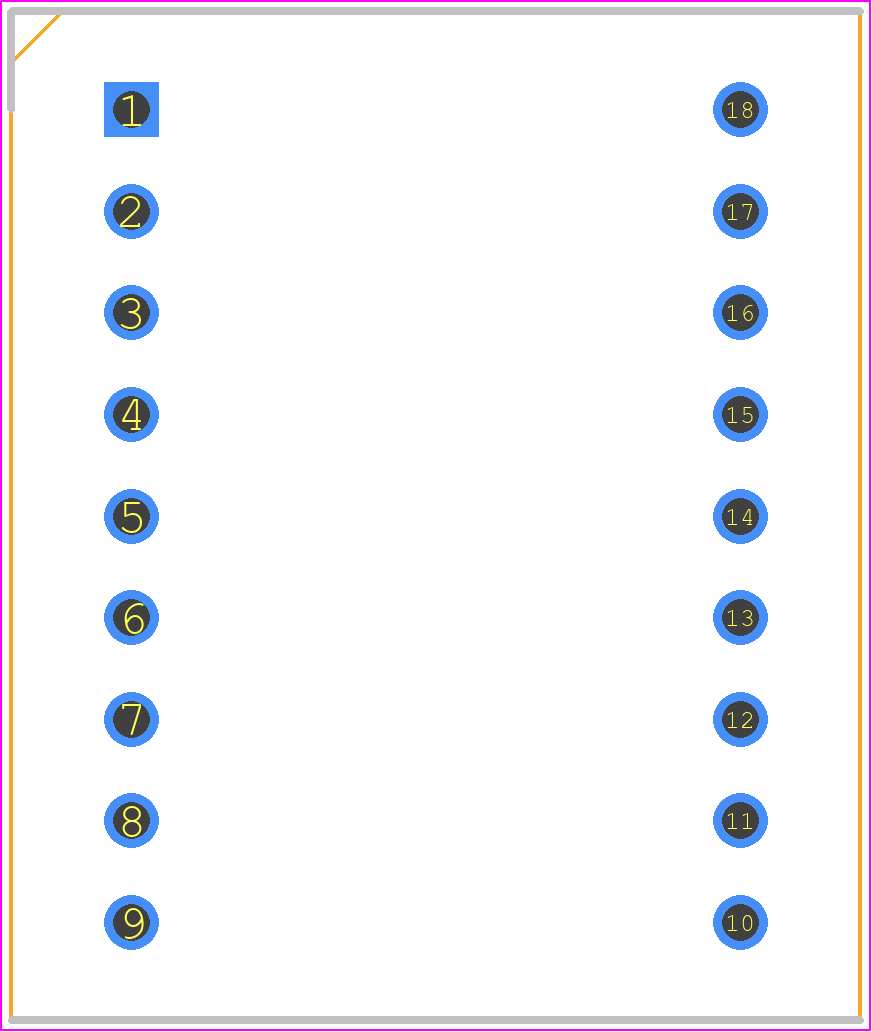

PCB Footprints

PDA54-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - PDA54-11SRWA

Datasheet Download Datasheet
Stock & Prices Price & Stock for PDA54-11SRWA
Part Number PDA54-11SRWA
Manufacturer Kingbright
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - PDA54-11SRWA
Released Date Feb 20, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

PDA54-11SRWA Details

Manufacturer Part Number:
PDA54-11SRWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-18
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
5.87
Color:
SUPER BRIGHT RED
Color@Wavelength:
Orange-Red
Configuration:
COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display Height:
13.8 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Number of Characters:
2
Number of Functions:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
14 SEG ALPHANUMERIC LED DISPLAY
Peak Wavelength:
655 nm

PDA54-11SRWA Frequently Asked Questions (FAQs)

The recommended storage temperature range for the PDA54-11SRWA is -40°C to 100°C.
Yes, the PDA54-11SRWA is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors such as moisture and UV radiation.
The typical forward voltage drop of the PDA54-11SRWA is around 2.0-2.5V at a forward current of 20mA.
Yes, the PDA54-11SRWA is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The maximum allowable current for the PDA54-11SRWA is 30mA. Exceeding this current may reduce the lifespan of the device.
