PDC54-11CGKWA - Kingbright

Description: Alpha-Num Display Green Dual 13.8mm

Download PDC54-11CGKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

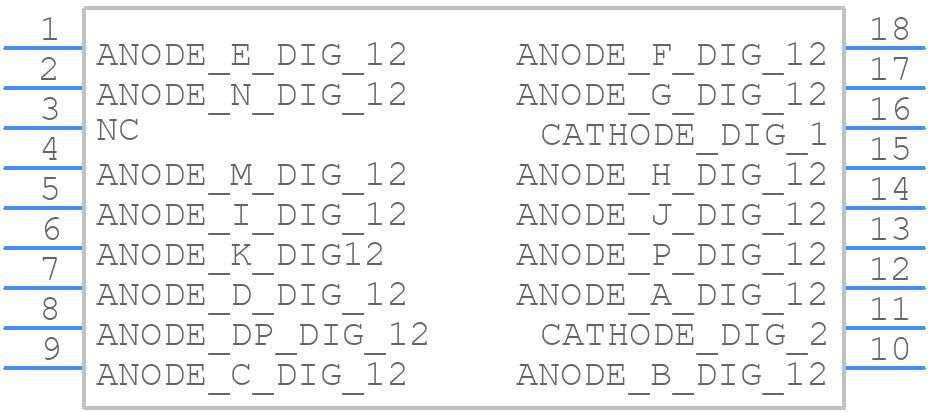

PDC54-11CGKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

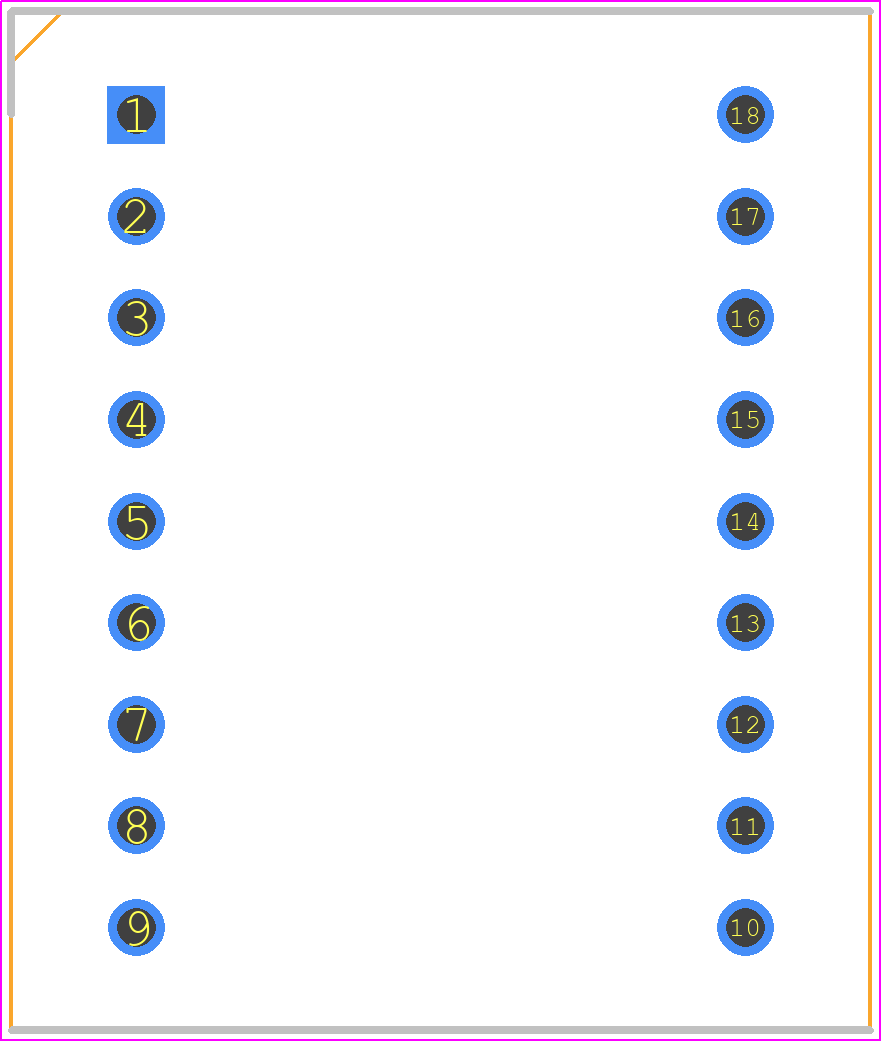

PDC54-11CGKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - PDC54-11CGKWA
click to zoom

PDC54-11CGKWA Details

  • Manufacturer Part Number:

    PDC54-11CGKWA

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    GREEN

  • Color@Wavelength:

    Green-Yellow

  • Configuration:

    COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    13.8 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

PDC54-11CGKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for PDC54-11CGKWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • While PDC54-11CGKWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for PDC54-11CGKWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, PDC54-11CGKWA is compatible with lead-free soldering processes, but the soldering profile should be adjusted according to the specific lead-free solder alloy used.
  • The typical lifespan of PDC54-11CGKWA is 50,000 hours or more, depending on the operating conditions and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PDC54-11CGKWA Overview

Use the download button to access the PDC54-11CGKWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PDC54, or try a keyword search, such as LED Displays
