PDC54-11SYKWA footprint, schematic symbol and 3D model by Kingbright

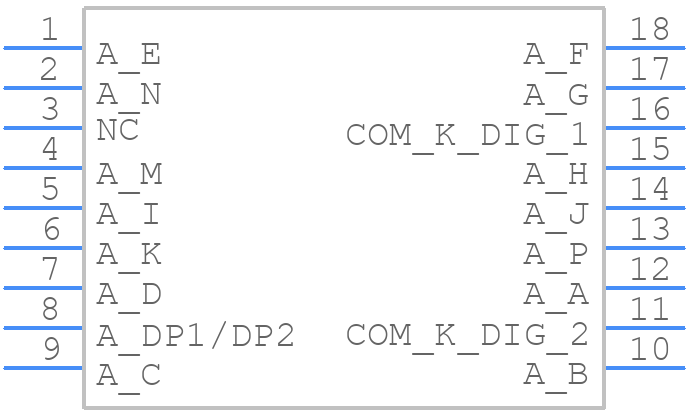

Symbol

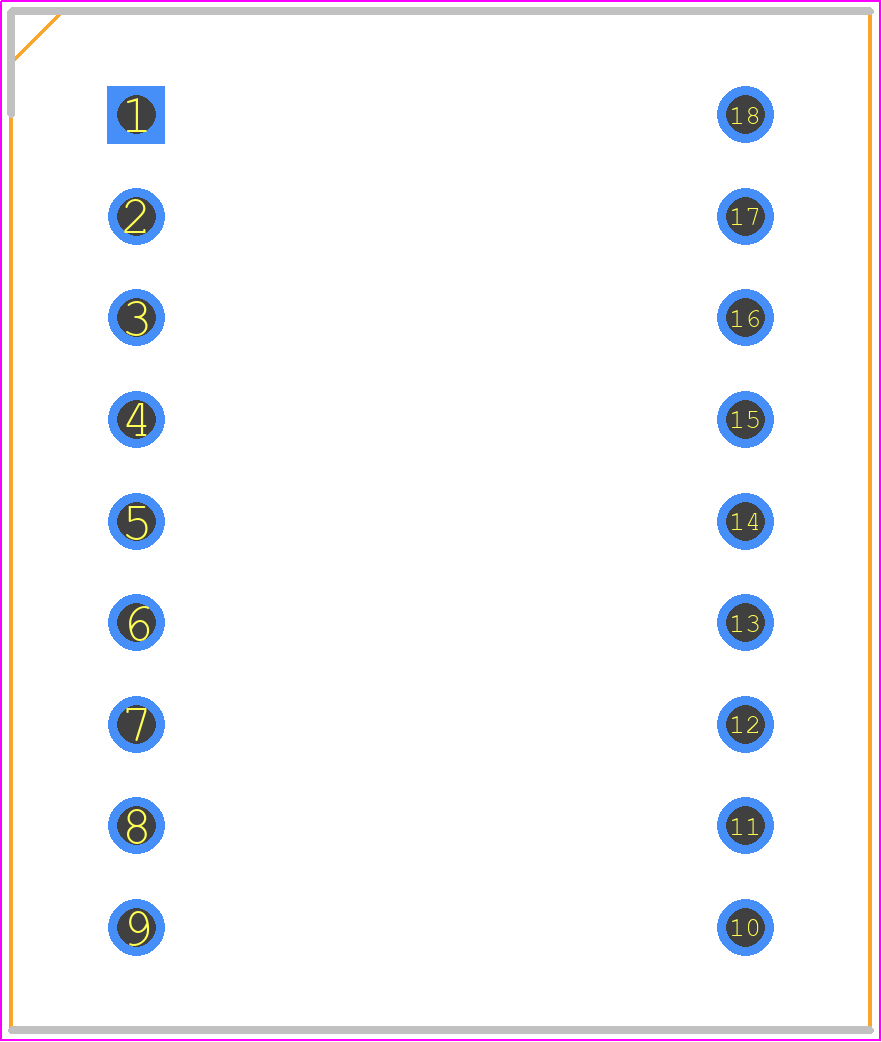

PCB Footprints

PDC54-11SYKWA Details

The recommended storage temperature for PDC54-11SYKWA is -20°C to 60°C, with a relative humidity of 60% or less.
While PDC54-11SYKWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. A clear resin or conformal coating can be applied to protect the LED from moisture and UV.
The recommended soldering temperature for PDC54-11SYKWA is 260°C (max) for 3 seconds (max) using a soldering iron, or 240°C (max) for 10 seconds (max) using a reflow oven.
Yes, PDC54-11SYKWA is compatible with lead-free soldering processes, but the recommended soldering temperature and time may vary depending on the specific lead-free solder alloy used.
The typical lifespan of PDC54-11SYKWA is 50,000 hours or more, depending on the operating conditions, such as temperature, humidity, and drive current.

Community Provided

System Verified

Community Approved

Use the download button to access the PDC54-11SYKWA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PDC54, or try a keyword search, such as LED Displays
