Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the device is placed near the connector to reduce signal loss.
The device has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal relief pattern on the PCB. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the operating temperature exceeds 85°C.
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the device supports cable lengths up to 100 meters for Fast Ethernet and 200 meters for Gigabit Ethernet. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the optimal cable length for your specific use case.
The device is configurable through the SPI interface. You can use the TI-provided software development kit (SDK) or third-party tools to configure the device for specific Ethernet protocols, such as IEEE 802.1Q, VLAN, or jumbo frames. Consult the datasheet and application notes for more information.
The device requires a specific power-up and power-down sequencing to ensure proper operation. The recommended sequence is to power up the 1.8V supply first, followed by the 3.3V supply, and then the 2.5V supply. During power-down, the sequence should be reversed. Consult the datasheet for more information on the specific power-up and power-down requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDP83825IRMQR Overview

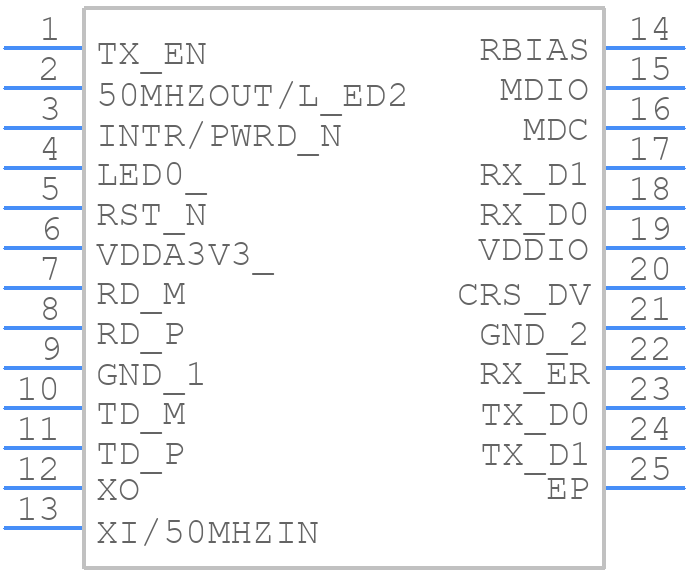

Use the download button to access the PDP83825IRMQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDP83,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
