Part Image

PDRV8305NQPHPRQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Automotive 3-Phase BLDC Gate Driver w/ Three Current Sense Amps 48-HTQFP -40 to 125

Download PDRV8305NQPHPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

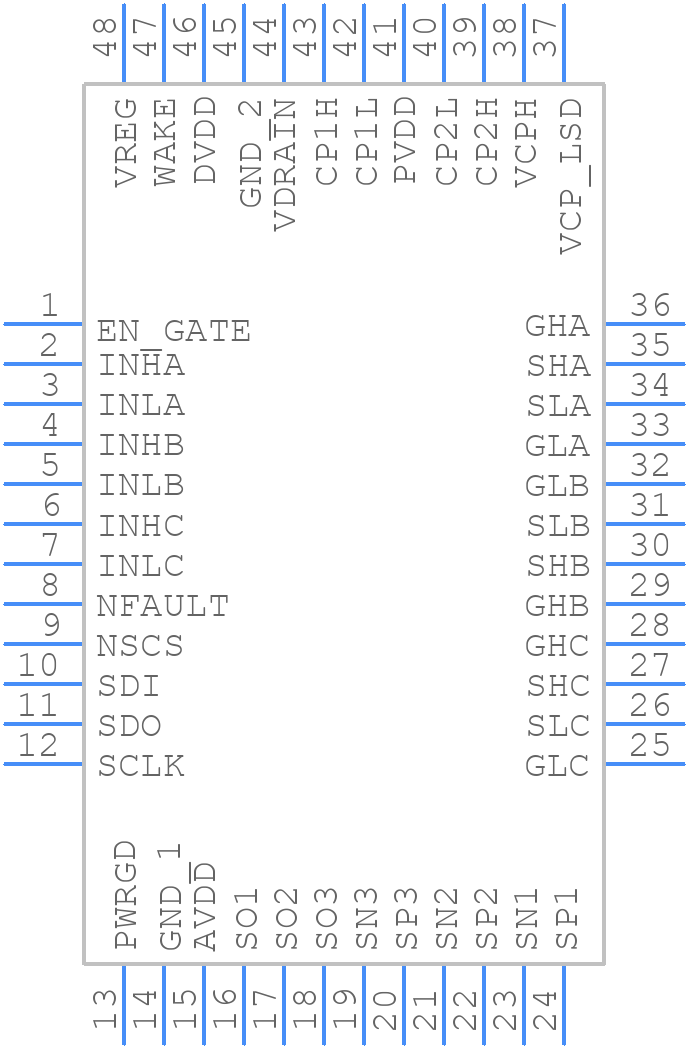

PDRV8305NQPHPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PDRV8305NQPHPRQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP(S-PQFP-G48)
click to zoom
3D Models
PDRV8305NQPHPRQ1 - Texas Instruments - 3D model - Quad Flat Packages - PHP(S-PQFP-G48)
click to zoom

PDRV8305NQPHPRQ1 Details

  • Manufacturer Part Number:

    PDRV8305NQPHPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HTQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-03-11

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

PDRV8305NQPHPRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guidelines in the application note SLVAE03, which includes layout considerations for the device, such as thermal management, noise reduction, and signal integrity.
  • The gate drive circuit optimization of the gate resistance, gate capacitance, and gate voltage to ensure proper switching performance. TI provides guidelines in the application note SLVAE03 and the device datasheet.
  • The maximum allowed voltage on the VCC pin is 15V, as specified in the device datasheet. Exceeding this voltage may damage the device.
  • TI recommends following proper ESD handling procedures, such as using ESD-safe equipment, wearing ESD-protective wrist straps, and storing the devices in ESD-protective packaging. Additionally, the device has built-in ESD protection diodes, but it is still important to follow ESD handling guidelines.
  • The thermal derating curve for the PDRV8305NQPHPRQ1 is provided in the device datasheet, which shows the maximum allowed power dissipation versus ambient temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PDRV8305NQPHPRQ1 Overview

Use the download button to access the PDRV8305NQPHPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDRV8, or try a keyword search, such as MOSFET Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
