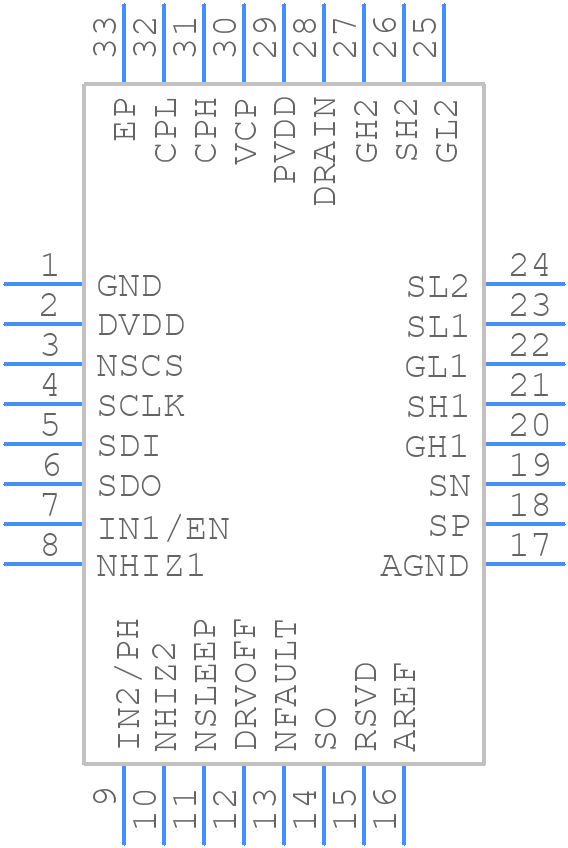

PDRV8706SRHBQ1 - Texas Instruments

PDRV8706SRHBQ1 Details

• Manufacturer Part Number:

  PDRV8706SRHBQ1

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Package Description:

  VQFN-32

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2020-01-31

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PQCC-N32

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  0.062 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  5.5 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  37 V

• Supply Voltage1-Min:

  4.9 V

• Supply Voltage1-Nom:

  13.5 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  0.6 µs

• Turn-on Time:

  0.85 µs

• Width:

  5 mm
